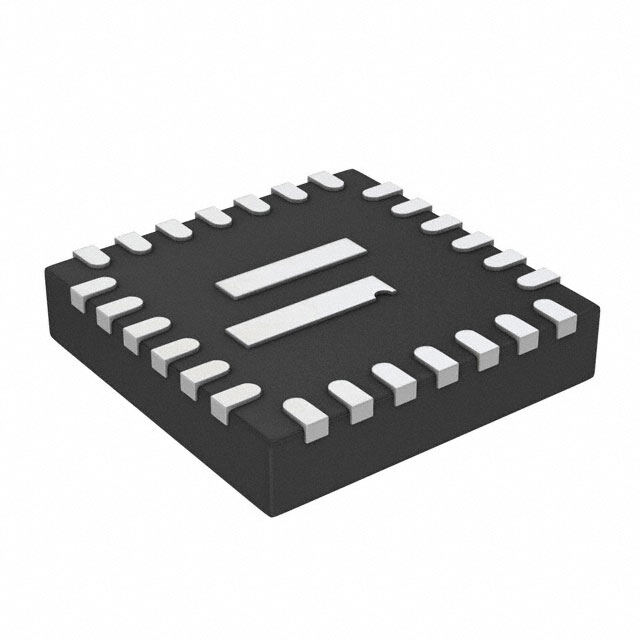

MIC23451-AAAYFL-TR
RoHS
RoHS compliant
RoHS compliantPackage 26-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MIC23451 Tape & Reel (TR) Active Step-Down DC to DC switching regulator 5.5V 2A 3MHz -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $3.03
Unit Price: USD $3.0343
≥1 USD $3.0343
≥10 USD $2.48995
≥100 USD $2.41205
≥500 USD $2.33415
≥1000 USD $2.25625
Inventory: 4088
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 26-VFQFN Exposed Pad
Number of Pins 26
Supplier Device Package 26-QFN (4x4)
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2016
Series HyperLight Load?
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Base Part Number MIC23451
Function Step-Down
Number of Outputs 3
Efficiency 93 %
Voltage - Input (Max) 5.5V
Output Voltage 1V
Output Type Adjustable
Max Output Current 1A
Voltage - Input (Min) 2.7V
Number of Channels 3
Min Supply Voltage -300mV
Output Configuration Positive
Current - Output 2A
Max Output Voltage 3.3V
Voltage - Output (Min/Fixed) 1V
Topology Buck
Min Input Voltage 2.7V
Frequency - Switching 3MHz
Max Input Voltage 5.5V
Synchronous Rectifier Yes
Min Output Voltage 1V
Voltage - Output (Max) 3.3V
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
