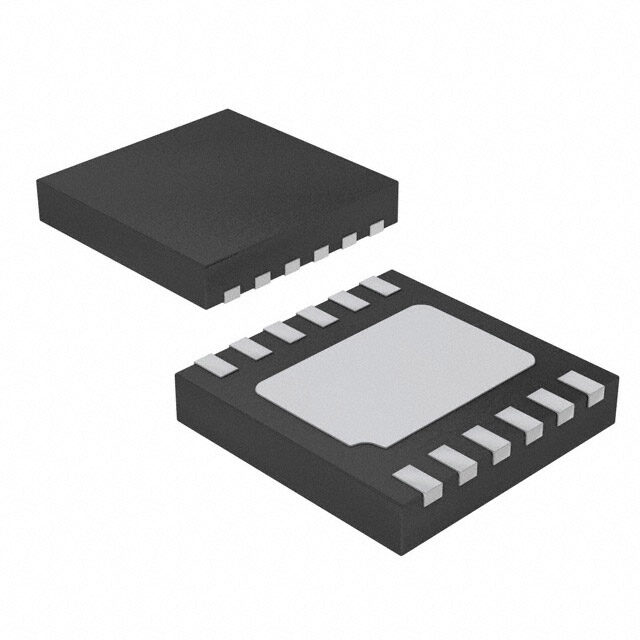

MIC23303YML-T5 image
Favorite
MIC23303YML-T5 image
Favorite

MIC23303YML-T5

Microchip Technology
RoHS
RoHS RoHS compliant
Package 12-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description MIC23303 Cut Tape (CT) Active Step-Down DC to DC switching regulator 3.6V 3mm 3A 4MHz
PDF
/
Buying Options
Total Price: USD $7.35
Unit Price: USD $7.3473
≥1 USD $7.3473
≥10 USD $6.0287
≥100 USD $5.83965
≥500 USD $5.65155
≥1000 USD $5.46345
Inventory: 1203
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 3mm
Length 3mm
Height 830μm

Technical

Min Output Voltage 650mV
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 4MHz
Topology Buck
Voltage - Output (Min/Fixed) 0.65V
Max Output Voltage 3.6V
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.7V
Max Output Current 3A
Output Type Adjustable
Output Voltage 3.6V
Voltage - Input (Max) 5.5V
Efficiency 93 %
Number of Outputs 1
Function Step-Down
Base Part Number MIC23303
Terminal Pitch 0.5mm
Terminal Form NO LEAD
Terminal Position DUAL
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series HyperLight Load?
Published 2016
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C TJ

Physical

Number of Pins 12
Package / Case 12-VFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
