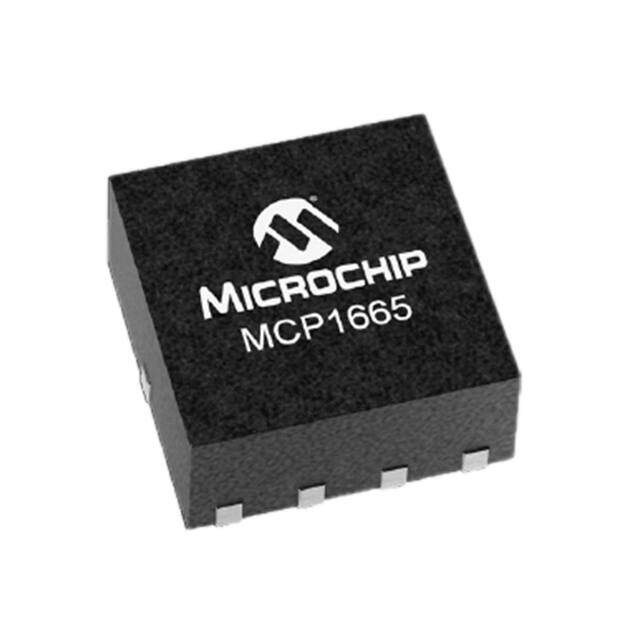

MCP1665T-E/MRA
RoHS
RoHS compliant
RoHS compliantPackage 10-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MCP1665 UVLO AND OVER VOLTAGE PROTECTION Tape & Reel (TR) Active DC to DC switching regulator 3.6V 2mm 1A 575kHz
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.804
≥1 USD $1.804
≥10 USD $1.496
≥100 USD $1.364
Inventory: 1649
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2mm
Length 2mm
Height Seated (Max) 0.9mm
Technical
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 575kHz
Control Mode VOLTAGE-MODE
Topology Boost
Voltage - Output (Min/Fixed) 2.8V
Current - Output 1A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.7V
Output Type Adjustable
Output Voltage 32V
Voltage - Input (Max) 5V
Number of Outputs 1
Function Step-Up
Base Part Number MCP1665
Terminal Pitch 0.5mm
Terminal Form J BEND
Terminal Position QUAD
Additional Feature UVLO AND OVER VOLTAGE PROTECTION
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 10-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 4 Weeks
