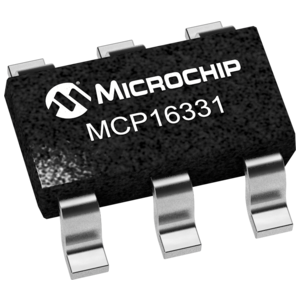

MCP16331T-E/CHVAO
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MCP16331 ADJ OUTPUT VOLTAGE= 2V TO 24V Tape & Reel (TR) Matte Tin (Sn) DC to DC switching regulator 50V 1.6mm 550kHz 125C
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.8322
≥1 USD $0.8322
≥10 USD $0.68305
≥100 USD $0.66215
≥500 USD $0.6403
≥1000 USD $0.6194
Inventory: 265433
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 1.6mm
Length 2.9mm
Height Seated (Max) 1.45mm
Technical
Screening Level AEC-Q100; TS 16949
Switching Frequency-Max 550kHz
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 50V
Control Mode CURRENT-MODE
Input Voltage (Min) 4.4V
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 125°C
JESD-30 Code R-PDSO-G6
Base Part Number MCP16331
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.95mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Additional Feature ADJ OUTPUT VOLTAGE= 2V TO 24V
Terminal Finish Matte Tin (Sn)
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
