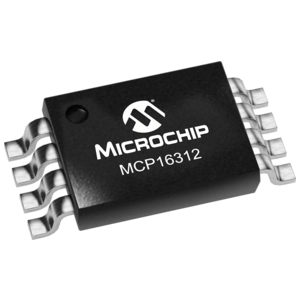

MCP16312T-E/MSVAO
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
CURRENT-MODE ROHS3Compliant AEC-Q100; TS 16949 DUAL Switching Regulator IC 125C 575kHz 2mm 30V
PDF
/
Buying Options
Total Price: USD $47.21
Unit Price: USD $47.205728
≥1 USD $47.205728
≥10 USD $44.533711
≥100 USD $42.012934
≥500 USD $39.634843
≥1000 USD $37.391358
Inventory: 1163
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2mm
Length 3mm
Height Seated (Max) 0.8mm
Technical
Screening Level AEC-Q100; TS 16949
Switching Frequency-Max 575kHz
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 30V
Control Mode CURRENT-MODE
Input Voltage (Min) 4.4V
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 7V
Output Voltage 5V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 125°C
JESD-30 Code R-PDSO-N8
Base Part Number MCP16312
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Additional Feature ALSO OPERATES IN ADJUSTABLE MODE FROM 2 TO 24V; ALSO REQUIRE PFM CONTROL TECHNIQUE
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
