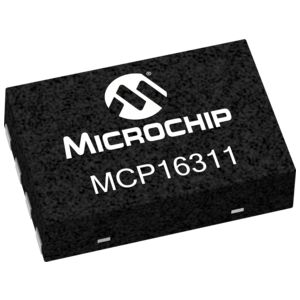

MCP16311T-E/MNYVAO
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MCP16311 ALSO OPERATES IN ADJUSTABLE MODE FROM 2TO 24V; ALSO REQUIRE PFM CONTROL TECHNIQUE Tape & Reel (TR) Active DC to DC switching regulator 30V 3mm 575kHz 125C
PDF
/
Buying Options
Total Price: USD $1.7
Unit Price: USD $1.701542
≥1 USD $1.701542
≥10 USD $1.605225
≥100 USD $1.514353
≥500 USD $1.428641
≥1000 USD $1.347774
Inventory: 1416
Minimum: 1
-
+
Technical Details
Physical
Surface Mount YES
Technical
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Additional Feature ALSO OPERATES IN ADJUSTABLE MODE FROM 2 TO 24V; ALSO REQUIRE PFM CONTROL TECHNIQUE
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number MCP16311
JESD-30 Code S-PDSO-G8
Operating Temperature (Max) 125°C
Operating Temperature (Min) -40°C
Output Voltage 5V
Input Voltage-Nom 7V
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage (Min) 4.4V
Control Mode CURRENT-MODE
Input Voltage (Max) 30V
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Switching Frequency-Max 575kHz
Screening Level AEC-Q100; TS 16949
Dimensions
Height Seated (Max) 1.1mm
Length 3mm
Width 3mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
