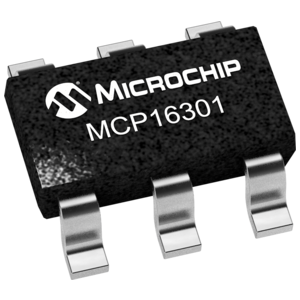

MCP16301T-450E/CHVAO image
Favorite
MCP16301T-450E/CHVAO image
Favorite

MCP16301T-450E/CHVAO

Microchip Technology
RoHS
RoHS RoHS compliant
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description MCP16301 ADJ O/P VOLTAGE IS FROM 2V TO 15V Tape & Reel (TR) Active DC to DC switching regulator 30V 1.55mm 0.6A 550kHz
PDF
/
Inventory: 2809
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Surface Mount YES

Technical

Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Additional Feature ADJ O/P VOLTAGE IS FROM 2V TO 15V
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 0.95mm
Base Part Number MCP16301
JESD-30 Code R-PDSO-G6
Operating Temperature (Max) 125°C
Operating Temperature (Min) -40°C
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage (Min) 4V
Control Mode CURRENT-MODE
Output Current-Max 0.6A
Input Voltage (Max) 30V
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Switching Frequency-Max 550kHz
Screening Level AEC-Q100; TS 16949

Dimensions

Height Seated (Max) 1.45mm
Length 2.9mm
Width 1.55mm

Compliance

RoHS Status ROHS3 Compliant
