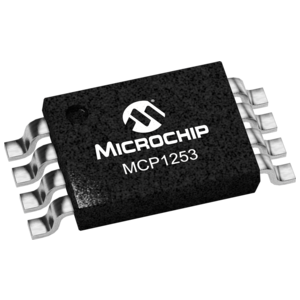

MCP1253T-ADJI/MSVAO
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MCP1253 Tape & Reel (TR) Active SWITCHED CAPACITOR REGULATOR DC to DC switching regulator 5.5V 3mm 0.15A 1200kHz
PDF
/
Buying Options
Total Price: USD $4.55
Unit Price: USD $4.553723
≥1 USD $4.553723
≥10 USD $4.295952
≥100 USD $4.05279
≥500 USD $3.82338
≥1000 USD $3.606977
Inventory: 1132
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 1.1mm
Technical
Output Voltage-Min 1.5V
Output Voltage-Max 5.5V
Switching Frequency-Max 1200kHz
Switcher Configuration BUCK-BOOST
Supply Current-Max (Isup) 0.12mA
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 5.5V
Output Current-Max 0.15A
Control Mode VOLTAGE-MODE
Input Voltage (Min) 2V
Analog IC - Other Type SWITCHED CAPACITOR REGULATOR
Temperature Grade INDUSTRIAL
Input Voltage-Nom 3.6V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
JESD-30 Code S-PDSO-G8
Base Part Number MCP1253
Terminal Pitch 0.65mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology MOS
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
