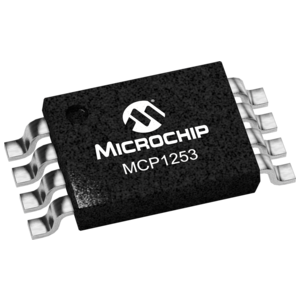

MCP1253T-33X50E/MSVAO image
Favorite
MCP1253T-33X50E/MSVAO image
Favorite

MCP1253T-33X50E/MSVAO

Microchip Technology
RoHS
RoHS RoHS compliant
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description MCP1253 5VOLT OUTPUT ALSO AVAILABLE Tape & Reel (TR) Active DC to DC switching regulator 5.5V 3mm 0.15A 1200kHz
PDF
/
Inventory: 9757
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 3mm
Length 3mm
Height Seated (Max) 1.1mm

Technical

Output Voltage-Min 3.2175V
Output Voltage-Max 3.3825V
Switching Frequency-Max 1200kHz
Switcher Configuration BUCK-BOOST
Supply Current-Max (Isup) 0.12mA
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 5.5V
Output Current-Max 0.15A
Control Mode VOLTAGE-MODE
Input Voltage (Min) 2.1V
Analog IC - Other Type SWITCHED CAPACITOR REGULATOR
Input Voltage-Nom 3.6V
Output Voltage 3.3V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 125°C
JESD-30 Code S-PDSO-G8
Base Part Number MCP1253
Terminal Pitch 0.65mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology MOS
Additional Feature 5 VOLT OUTPUT ALSO AVAILABLE
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)

Physical

Surface Mount YES
