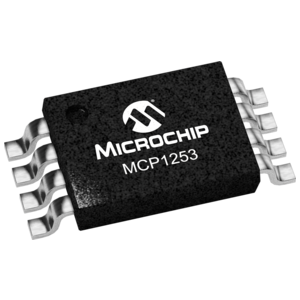

MCP1253-ADJI/MSVAO
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MCP1253 Active SWITCHED CAPACITOR REGULATOR PULSE WIDTH MODULATION DC to DC switching regulator 5.5V 3mm 0.15A 1200kHz
PDF
/
Buying Options
Total Price: USD $1.99
Unit Price: USD $1.993837
≥1 USD $1.993837
≥10 USD $1.880968
≥100 USD $1.774506
≥500 USD $1.674063
≥1000 USD $1.579301
Inventory: 1169
Minimum: 1
-
+
Technical Details
Physical
Surface Mount YES
Technical
Series Automotive, AEC-Q100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Technology MOS
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 0.65mm
Base Part Number MCP1253
JESD-30 Code S-PDSO-G8
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Input Voltage-Nom 3.6V
Temperature Grade INDUSTRIAL
Analog IC - Other Type SWITCHED CAPACITOR REGULATOR
Input Voltage (Min) 2V
Control Mode VOLTAGE-MODE
Output Current-Max 0.15A
Input Voltage (Max) 5.5V
Control Technique PULSE WIDTH MODULATION
Supply Current-Max (Isup) 0.12mA
Switcher Configuration BUCK-BOOST
Switching Frequency-Max 1200kHz
Output Voltage-Max 5.5V
Output Voltage-Min 1.5V
Dimensions
Height Seated (Max) 1.1mm
Length 3mm
Width 3mm
Compliance
RoHS Status ROHS3 Compliant
