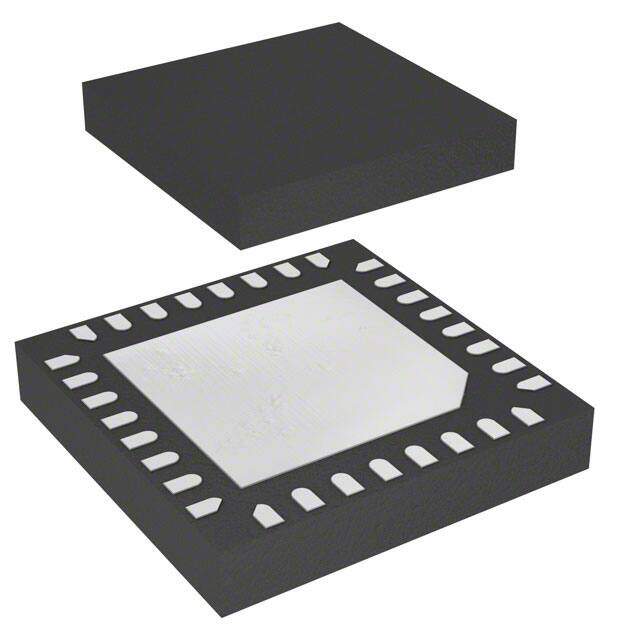

XR77103ELBTR
RoHS
RoHS compliant
RoHS compliantPackage 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
RoHS Compliant Adjustable Positive Surface Mount DC to DC switching regulator -40C~125C TJ 300kHz~2.2MHz 2A 14V
PDF
/
Buying Options
Total Price: USD $4.74
Unit Price: USD $4.7432
≥1 USD $4.7432
≥10 USD $4.25832
≥100 USD $4.025472
≥500 USD $3.488848
≥1000 USD $3.309926
≥3000 USD $2.97
Inventory: 2298
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage - Output (Max) 6V
Synchronous Rectifier Yes
Frequency - Switching 300kHz~2.2MHz
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Current - Output 2A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Voltage - Input (Min) 4.5V
Output Type Adjustable
Voltage - Input (Max) 14V
Number of Outputs 3
Function Step-Down
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Package / Case 32-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 26 Weeks
