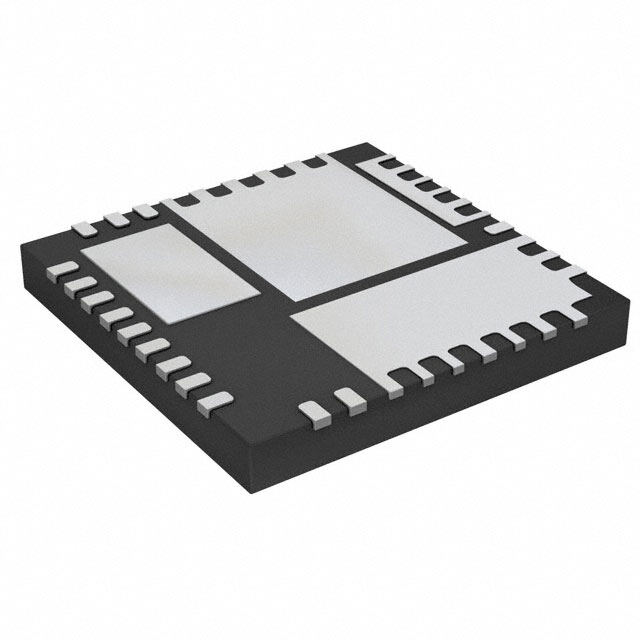

XR76115ELTR-F
RoHS
RoHS compliant
RoHS compliantPackage 37-PowerVFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Matte Tin (Sn) Active Step-Down DC to DC switching regulator 22V 15A 200kHz~800kHz -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $54.41
Unit Price: USD $54.4065
≥1 USD $54.4065
≥10 USD $44.64145
≥100 USD $43.24685
≥500 USD $41.8513
≥1000 USD $40.4567
Inventory: 3198
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 37-PowerVFQFN
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Series Power Blox?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 40
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 22V
Output Type Adjustable
Voltage - Input (Min) 4.5V
Output Configuration Positive
Current - Output 15A
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Frequency - Switching 200kHz~800kHz
Synchronous Rectifier Yes
Voltage - Output (Max) 18V
Compliance
RoHS Status RoHS Compliant
