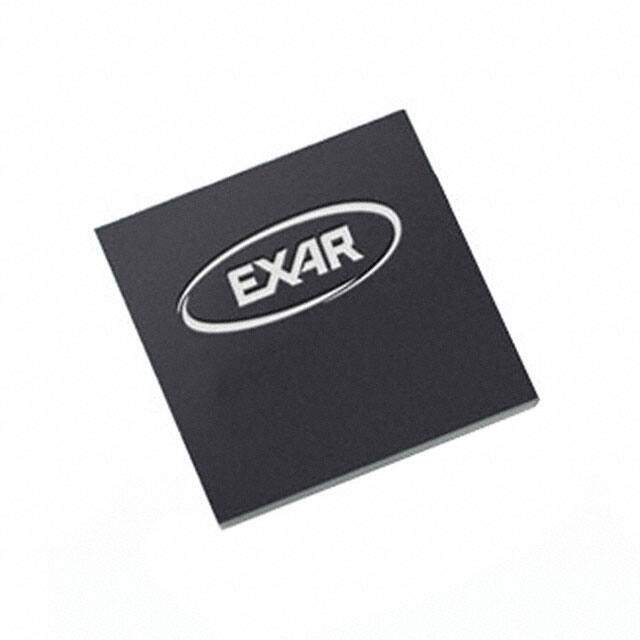

XR76112EL-F
RoHS
RoHS compliant
RoHS compliantPackage 30-PowerVFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tray Active Step-Down SWITCHING REGULATOR DC to DC switching regulator 12V 5mm 12A 200kHz~800kHz
PDF
/
Buying Options
Total Price: USD $5.72
Unit Price: USD $5.715475
≥1 USD $5.715475
≥10 USD $5.39196
≥100 USD $5.086759
≥500 USD $4.798828
≥1000 USD $4.527186
Inventory: 1070
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 30-PowerVFQFN
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tray
Series Power Blox?
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 30
ECCN Code EAR99
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-XQCC-N30
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 22V
Output Type Adjustable
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 12A
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 200kHz~800kHz
Synchronous Rectifier Yes
Voltage - Output (Max) 18V
Dimensions
Length 5mm
Width 5mm
Compliance
RoHS Status RoHS Compliant
