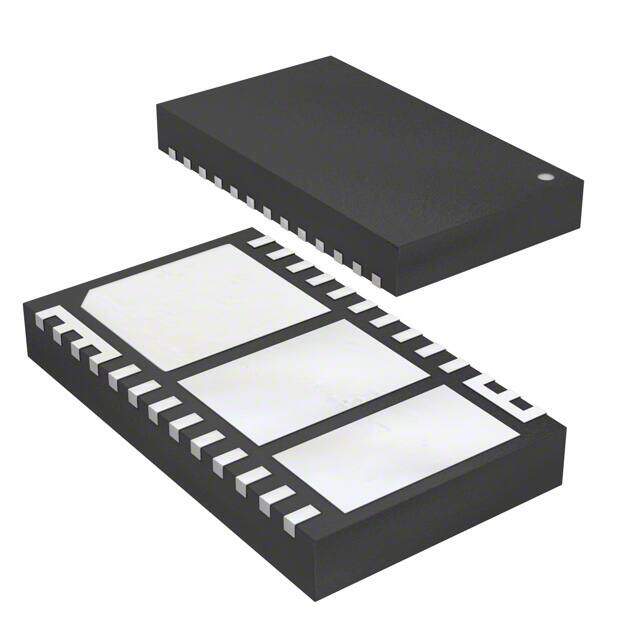

SP7652ER-L
RoHS
RoHS compliant
RoHS compliantPackage 26-PowerVFDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Strip Matte Tin (Sn) Discontinued Step-Down DC to DC switching regulator 5V 4mm 6A 600kHz
PDF
/
Buying Options
Total Price: USD $8.06
Unit Price: USD $8.05505
≥1 USD $8.05505
≥10 USD $6.60915
≥100 USD $6.403
≥500 USD $6.1959
≥1000 USD $5.98975
Inventory: 166
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4mm
Length 7mm
Technical
Voltage - Output (Max) 27V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 600kHz
Control Mode VOLTAGE-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Current - Output 6A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 5V
Voltage - Input (Min) 2.5V
Output Type Adjustable
Voltage - Input (Max) 28V
Qualification Status Not Qualified
Number of Outputs 1
Function Step-Down
JESD-30 Code R-PDSO-N26
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 26
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
JESD-609 Code e3
Series Power Blox?
Packaging Strip
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 26-PowerVFDFN
Mounting Type Surface Mount
