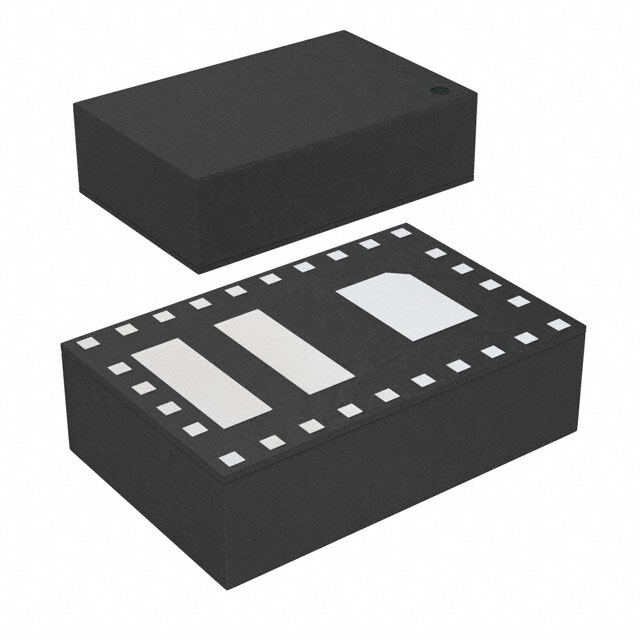

MAXM17502ALI+ image
Favorite
MAXM17502ALI+ image
Favorite

MAXM17502ALI+

Maxim Integrated
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description ADJ OUTPUT VOLTAGE FROM 0.9V TO 5V SWITCHING REGULATOR PULSE WIDTH MODULATION BICMOS DC to DC switching regulator 24V 6.5mm 1A 580kHz
PDF
/
Inventory: 2624
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Surface Mount YES

Technical

Published 2017
Number of Terminations 28
ECCN Code EAR99
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Additional Feature ADJ OUTPUT VOLTAGE FROM 0.9V TO 5V
Technology BICMOS
Terminal Position BOTTOM
Terminal Form BUTT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XBGA-B28
Number of Outputs 1
Input Voltage-Nom 24V
Temperature Grade AUTOMOTIVE
Max Supply Voltage 60V
Min Supply Voltage 4.5V
Analog IC - Other Type SWITCHING REGULATOR
Nominal Supply Current 5mA
Current - Output 1A
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Switching Frequency-Max 580kHz
Max Junction Temperature (Tj) 125°C

Dimensions

Height 2.92mm
Width 6.5mm

Compliance

RoHS Status RoHS Compliant
