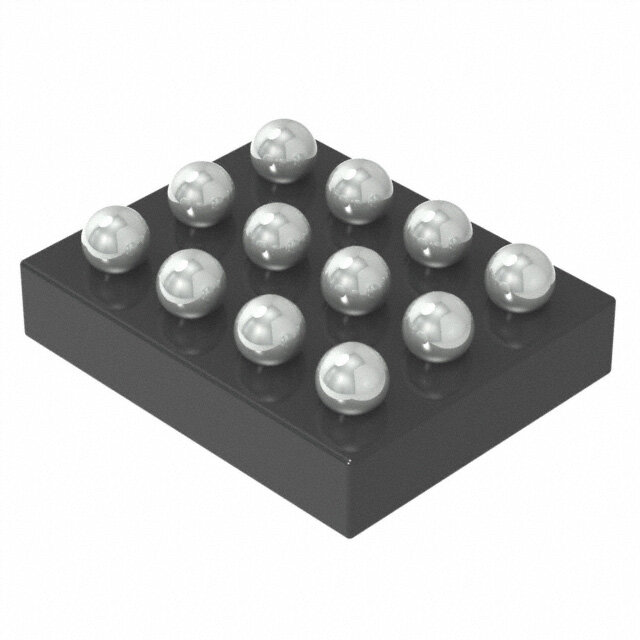

MAX77827BEWC+
RoHS
RoHS compliant
RoHS compliantPackage 12-XFBGA, WLBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tube Active Step-Up/Step-Down SWITCHING REGULATOR DC to DC switching regulator 3.8V 2.008mm 1.8A Switch 2.5MHz
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.5488
≥1 USD $1.5488
≥10 USD $1.38952
≥100 USD $1.31091
≥500 USD $1.116984
≥1000 USD $1.048784
≥3000 USD $0.917682
Inventory: 488
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 2.008mm
Height Seated (Max) 0.69mm
Technical
Voltage - Output (Max) 5.3V
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 2.5MHz
Control Mode CURRENT-MODE
Topology Buck-Boost
Voltage - Output (Min/Fixed) 2.3V
Current - Output 1.8A Switch
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.8V
Voltage - Input (Min) 2.6V
Output Type Adjustable
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
Number of Outputs 1
Function Step-Up/Step-Down
Terminal Pitch 0.4mm
Terminal Form BALL
Terminal Position BOTTOM
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tube
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 12-XFBGA, WLBGA
Mounting Type Surface Mount
