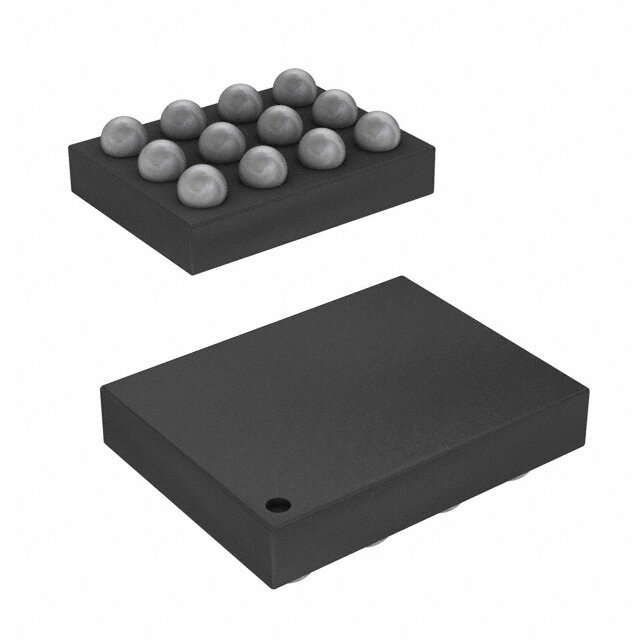

MAX77503AEWC+

Maxim Integrated
RoHS
RoHS RoHS compliant
Package 12-WFBGA, WLBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description MAX77503 Strip Active Step-Down DC to DC switching regulator 12V 0.69mm 1.5A 1MHz
PDF
/
Buying Options
Total Price: USD $1.41
Unit Price: USD $1.406308
≥1 USD $1.406308
≥10 USD $1.326708
≥100 USD $1.251614
≥500 USD $1.180761
≥1000 USD $1.113927
Inventory: 1151
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.69mm

Technical

Voltage - Output (Max) 5V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Current - Output 1.5A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 3V
Output Type Adjustable
Voltage - Input (Max) 14V
Number of Outputs 1
Function Step-Down
Base Part Number MAX77503
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.4mm
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Strip
Operating Temperature -40°C~85°C TA

Physical

Surface Mount YES
Package / Case 12-WFBGA, WLBGA
Mounting Type Surface Mount
