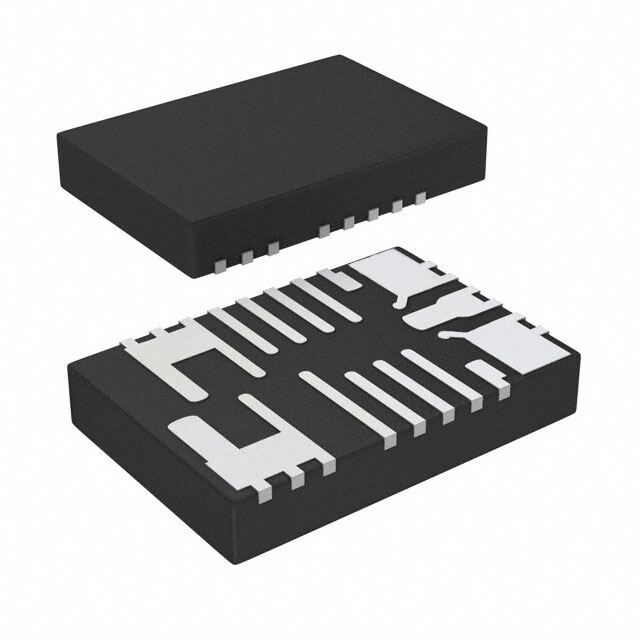

MAX20745EPL+T
RoHS
RoHS compliant
RoHS compliantPackage 15-VFQFN, FCQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MAX20745 Tape & Reel (TR) Matte Tin (Sn) Active DC to DC switching regulator 12V 6mm 25A 400kHz~900kHz
PDF
/
Buying Options
Total Price: USD $6.31
Unit Price: USD $6.3096
≥1 USD $6.3096
≥10 USD $5.80448
≥100 USD $5.683392
≥500 USD $5.663856
≥1000 USD $5.082088
≥3000 USD $4.928458
Inventory: 1138
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 6mm
Height Seated (Max) 0.955mm
Technical
Voltage - Output (Max) 5.5V
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 400kHz~900kHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.65V
Current - Output 25A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Output Type Adjustable
Voltage - Input (Max) 16V
Number of Outputs 1
Function Step-Down
Base Part Number MAX20745
Time@Peak Reflow Temperature-Max (s) 30
Peak Reflow Temperature (Cel) 260
Terminal Position BOTTOM
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 15
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 15-VFQFN, FCQFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 23 Weeks
