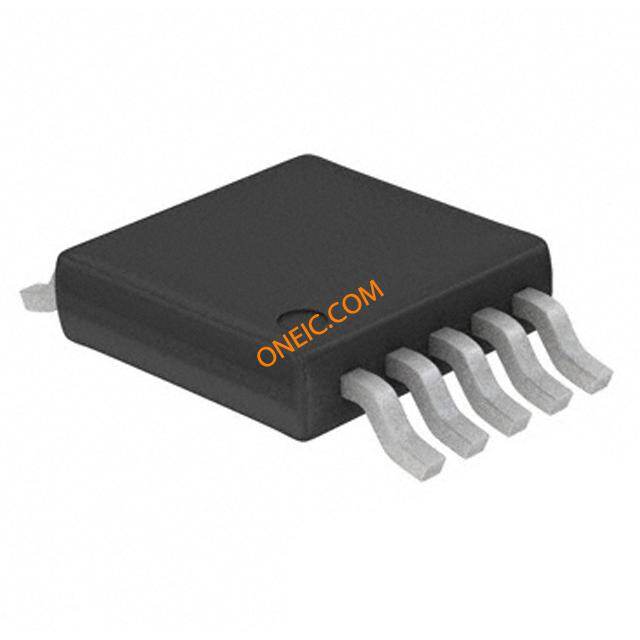

MAX1744AUB
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Nickel/Palladium/Gold (Ni/Pd/Au) Active SWITCHING CONTROLLER PULSE WIDTH MODULATION DC to DC switching regulator 36V 3mm 330kHz 125C
PDF
/
Buying Options
Total Price: USD $6.54
Unit Price: USD $6.54324
≥1 USD $6.54324
≥10 USD $6.172862
≥100 USD $5.82346
≥500 USD $5.49383
≥1000 USD $5.182859
Inventory: 1094
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 1.1mm
Technical
Switching Frequency-Max 330kHz
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 36V
Control Mode VOLTAGE-MODE
Input Voltage (Min) 4.5V
Analog IC - Other Type SWITCHING CONTROLLER
Temperature Grade AUTOMOTIVE
Input Voltage-Nom 5.5V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 125°C
Qualification Status Not Qualified
JESD-30 Code S-PDSO-G10
Pin Count 10
Time@Peak Reflow Temperature-Max (s) 20
Reach Compliance Code not_compliant
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 240
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Switching Regulator or Controllers
HTS Code 8542.31.00.01
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1
Part Status Active
Pbfree Code no
JESD-609 Code e4
Published 2010
Physical
Surface Mount YES
