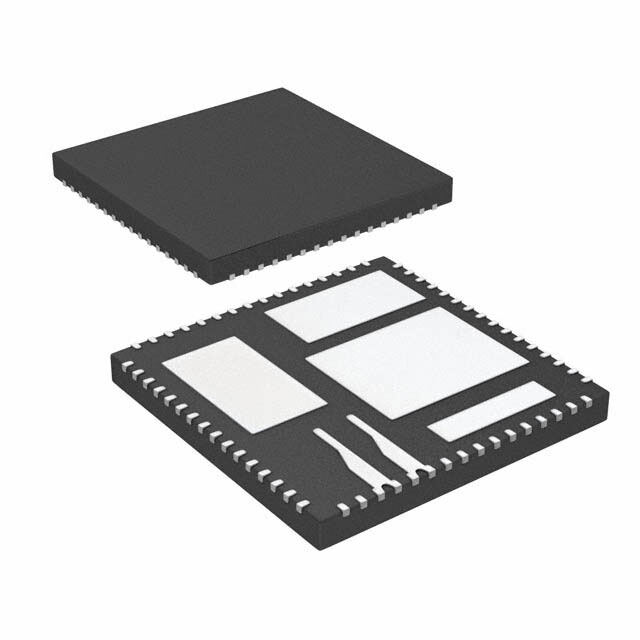

LTC3611IWP#TRPBF
RoHS
RoHS compliant
RoHS compliantPackage 64-PowerVFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LTC3611 Tape & Reel (TR) Matte Tin (Sn) PRODUCTION (Last Updated: 3weeks ago) DC to DC switching regulator 15V 9mm 10A 1MHz
PDF
/
Buying Options
Total Price: USD $17.37
Unit Price: USD $17.369667
≥1 USD $17.369667
≥200 USD $6.722048
≥500 USD $6.485726
≥1000 USD $6.368878
Inventory: 1131
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9mm
Length 9mm
Technical
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Current - Output 10A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 15V
Voltage - Input (Min) 4.5V
Output Type Adjustable
Output Voltage 32V
Number of Outputs 1
Function Step-Down
Base Part Number LTC3611
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Technology CMOS
Subcategory Switching Regulator or Controllers
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 64
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 64
Package / Case 64-PowerVFQFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 3 weeks ago)
Factory Lead Time 16 Weeks
