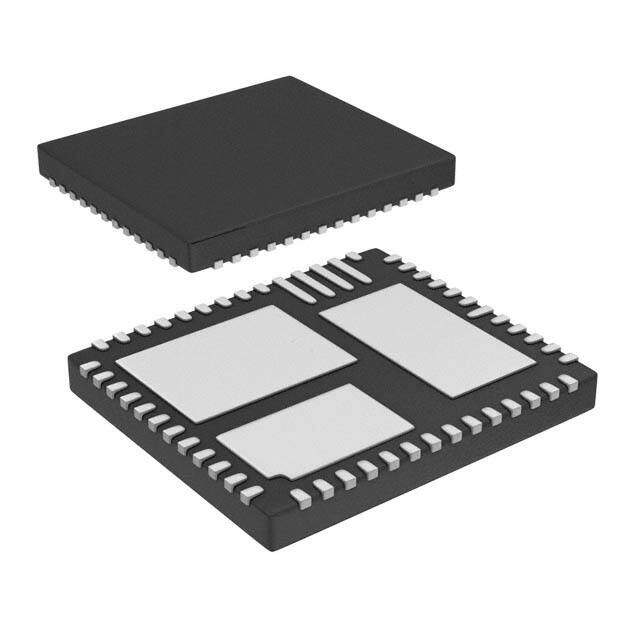

LTC3608IWKG#PBF image
Favorite
LTC3608IWKG#PBF image
Favorite
RoHS
RoHS RoHS compliant
Package 52-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description LTC3608 Tube Matte Tin (Sn) PRODUCTION (Last Updated: 3weeks ago) DC to DC switching regulator 15V 7mm 8A 1MHz
PDF
/
Buying Options
Total Price: USD $17.62
Unit Price: USD $17.6176
≥1 USD $17.6176
≥10 USD $16.24744
≥100 USD $15.517533
≥500 USD $13.874538
≥1000 USD $13.235561
≥3000 USD $12.59661
Inventory: 190
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 7mm
Length 8mm

Technical

Switching Frequency 1MHz
Voltage - Output (Max) 17.82V
Min Output Voltage 600mV
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Max Output Voltage 18V
Current - Output 8A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 15V
Voltage - Input (Min) 4V
Output Type Adjustable
Output Voltage 17.8V
Number of Outputs 1
Function Step-Down
Base Part Number LTC3608
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Technology CMOS
Subcategory Switching Regulator or Controllers
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 52
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2009
Packaging Tube
Operating Temperature -40°C~125°C TJ

Physical

Number of Pins 52
Surface Mount YES
Package / Case 52-VFQFN Exposed Pad
Mounting Type Surface Mount

Supply Chain

Lifecycle Status PRODUCTION (Last Updated: 3 weeks ago)
Factory Lead Time 8 Weeks
