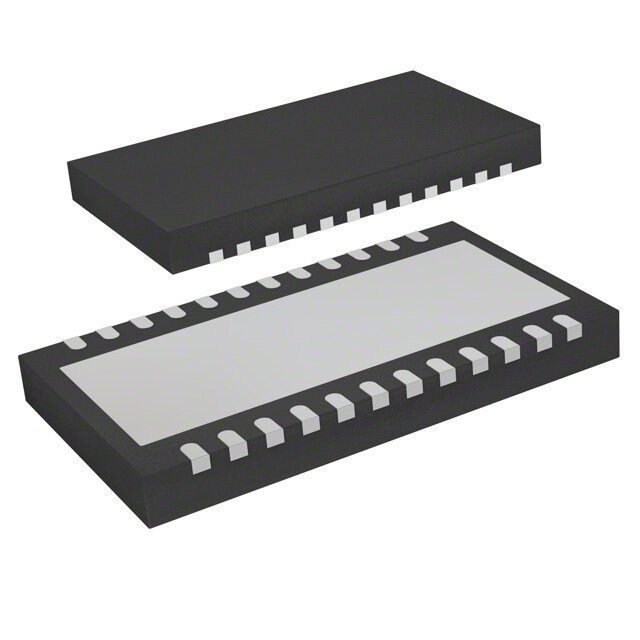

LT8582IDKD#TRPBF
RoHS
RoHS compliant
RoHS compliantPackage 24-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LT8582 Tape & Reel (TR) Matte Tin (Sn) Active DC to DC switching regulator 5V 4mm 3.3A Switch 200kHz~2.5MHz
PDF
/
Buying Options
Total Price: USD $10.43
Unit Price: USD $10.428
≥1 USD $10.428
≥10 USD $9.4204
≥100 USD $8.982688
≥500 USD $7.799616
≥1000 USD $7.449024
≥3000 USD $6.79177
Inventory: 1086
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4mm
Length 7mm
Height Seated (Max) 0.8mm
Technical
Voltage - Output (Max) 42V Switch
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 200kHz~2.5MHz
Control Mode CURRENT-MODE
Topology Boost, Cuk, Flyback, SEPIC
Current - Output 3.3A Switch
Output Configuration Positive or Negative
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 5V
Voltage - Input (Min) 2.5V
Output Type Adjustable
Voltage - Input (Max) 22V
Number of Outputs 2
Function Step-Up, Step-Up/Step-Down
Base Part Number LT8582
Terminal Pitch 0.5mm
Terminal Position DUAL
Technology BIPOLAR
Subcategory Switching Regulator or Controllers
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 24-WFDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
