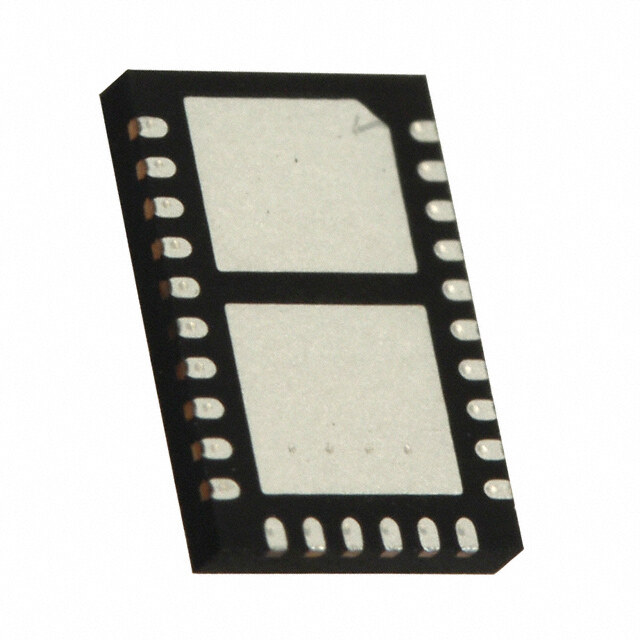

LT3690MPUFE#PBF
RoHS
RoHS compliant
RoHS compliantPackage 26-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LT3690 Tube Matte Tin (Sn) PRODUCTION (Last Updated: 3weeks ago) DC to DC switching regulator 12V 4mm 4A 138kHz~1.5MHz
PDF
/
Buying Options
Total Price: USD $29.81
Unit Price: USD $29.8144
≥1 USD $29.8144
≥10 USD $27.49648
≥100 USD $26.260502
≥500 USD $23.479984
≥1000 USD $22.398658
Inventory: 222
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status PRODUCTION (Last Updated: 3 weeks ago)
Physical
Mounting Type Surface Mount
Package / Case 26-WFQFN Exposed Pad
Surface Mount YES
Number of Pins 26
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Published 2015
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 26
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Subcategory Switching Regulator or Controllers
Technology BIPOLAR
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number LT3690
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 36V
Output Voltage 20V
Output Type Adjustable
Voltage - Input (Min) 3.9V
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 4A
Voltage - Output (Min/Fixed) 0.8V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 138kHz~1.5MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier No
Dimensions
Height Seated (Max) 0.8mm
Length 6mm
Width 4mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
