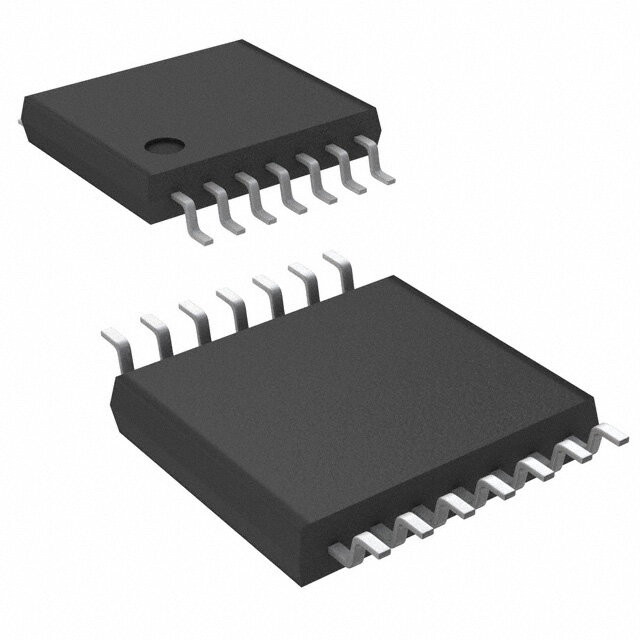

LT1308ACF
RoHS
/
Package 14-TSSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
LT1308 Tube Tin/Lead (Sn/Pb) Obsolete DC to DC switching regulator 1.1V 4.4mm 2A Switch 600kHz
PDF
/
Inventory: 3166
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 14-TSSOP (0.173, 4.40mm Width)
Surface Mount YES
Technical
Packaging Tube
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Subcategory Switching Regulator or Controllers
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 255
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number LT1308
Function Step-Up, Step-Up/Step-Down
Number of Outputs 1
Operating Temperature (Max) 70°C
Voltage - Input (Max) 10V
Output Type Adjustable
Voltage - Input (Min) 1V
Input Voltage-Nom 1.1V
Temperature Grade COMMERCIAL
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 2A Switch
Voltage - Output (Min/Fixed) 1.22V
Topology Boost, SEPIC
Control Mode CURRENT-MODE
Frequency - Switching 600kHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier No
Voltage - Output (Max) 34V
Dimensions
Length 5mm
Width 4.4mm
Compliance
RoHS Status Non-RoHS Compliant
