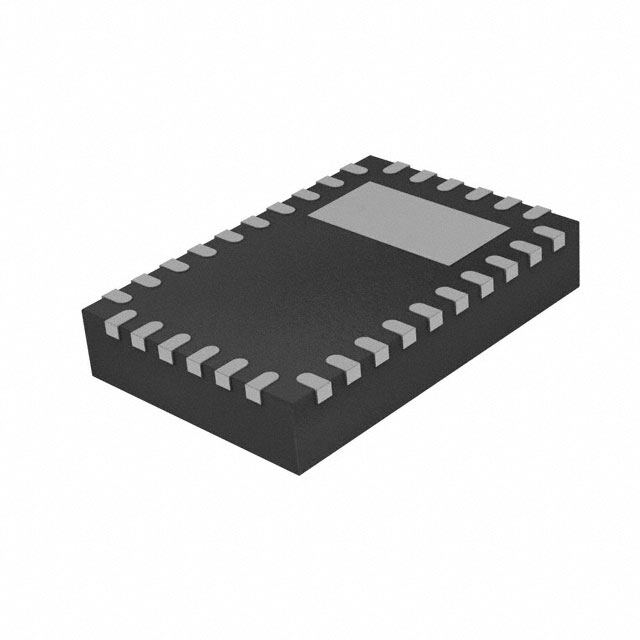

EN6310QA
RoHS
RoHS compliant
RoHS compliantPackage 30-PowerFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
OUTPUT VOLTAGE RANGE FROM 0.6V TO 3.3V Tape & Reel (TR) Active Step-Down DC to DC switching regulator 5V 4mm 1A 2.2MHz
PDF
/
Buying Options
Total Price: USD $246.72
Unit Price: USD $246.7169
≥1 USD $246.7169
≥10 USD $221.1942
Inventory: 409
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 30-PowerFQFN
Surface Mount YES
Technical
Operating Temperature -40°C~105°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, Enpirion?
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 30
ECCN Code EAR99
Additional Feature OUTPUT VOLTAGE RANGE FROM 0.6 V TO 3.3 V
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XQCC-N30
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Type Adjustable
Voltage - Input (Min) 2.7V
Input Voltage-Nom 5V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 1A
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 2.2MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Voltage - Output (Max) 3.3V
Dimensions
Length 5mm
Width 4mm
Compliance
RoHS Status RoHS Compliant
