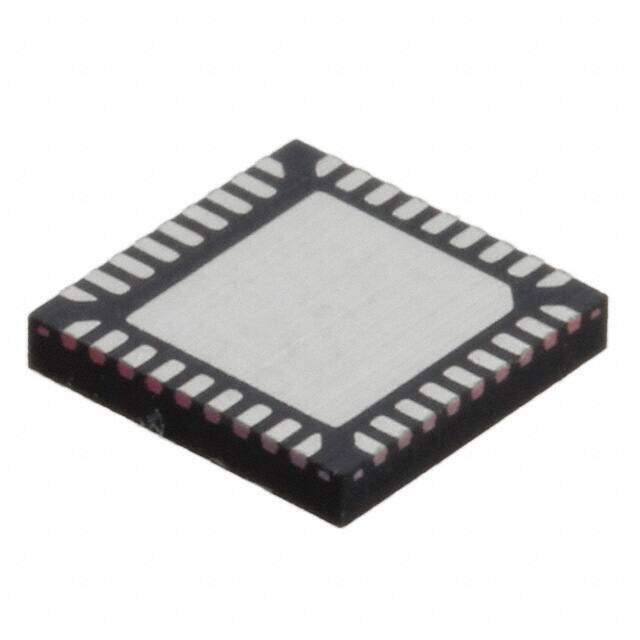

EC2630QI image
Favorite
EC2630QI image
Favorite

EC2630QI

Intel
RoHS
RoHS RoHS compliant
Package 36-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description Cut Tape (CT) Matte Tin (Sn) - annealed Active Ratiometric DC to DC switching regulator 12V 5.5mm 4.5A 115kHz
PDF
/
Buying Options
Total Price: USD $53.7
Unit Price: USD $53.6959
≥1 USD $53.6959
≥10 USD $44.05815
≥100 USD $42.6816
≥500 USD $41.30505
≥1000 USD $39.92755
Inventory: 1226
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 5.5mm
Length 5.5mm
Height Seated (Max) 0.95mm

Technical

Synchronous Rectifier Yes
Frequency - Switching 115kHz
Topology Charge Pump
Voltage - Output (Min/Fixed) Vin/2
Current - Output 4.5A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 8V
Output Type Fixed
Output Voltage 6V
Voltage - Input (Max) 13.2V
Number of Outputs 1
Function Ratiometric
JESD-30 Code S-XQCC-N36
Terminal Pitch 0.5mm
Terminal Form NO LEAD
Terminal Position QUAD
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 36
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series Enpirion?
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C TA

Physical

Surface Mount YES
Package / Case 36-VFQFN Exposed Pad
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
