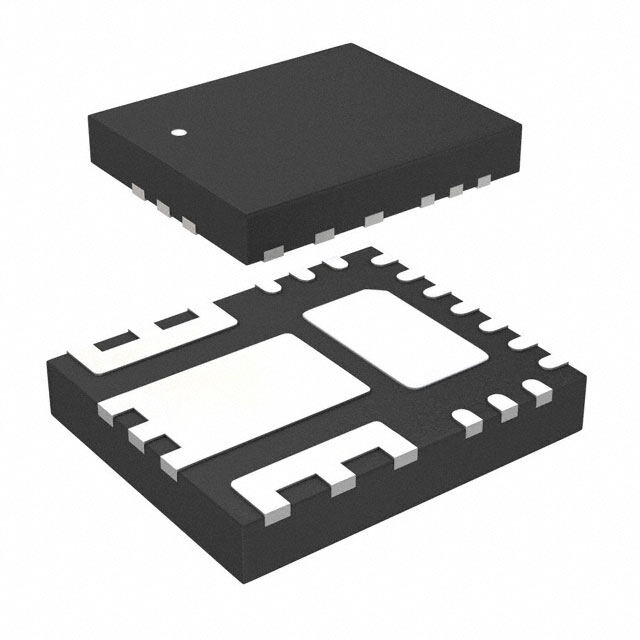

IR3839MTRPBF
RoHS
RoHS compliant
RoHS compliantPackage 17-PowerVQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
IR3839MPBF Tape & Reel (TR) Matte Tin (Sn) Obsolete DC to DC switching regulator 14.4V 5mm 6A 225kHz~1.65MHz
PDF
/
Buying Options
Total Price: USD $2.35
Unit Price: USD $2.3503
≥1 USD $2.3503
≥10 USD $1.9285
≥100 USD $1.86865
≥500 USD $1.80785
≥1000 USD $1.748
Inventory: 18058
Minimum: 1
-
+
Technical Details
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Radiation Hardening No
Dimensions
Width 5mm
Length 6mm
Technical
Min Output Voltage 600mV
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 225kHz~1.65MHz
Control Mode VOLTAGE-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Max Output Voltage 14.4V
Current - Output 6A
Output Configuration Positive
Nominal Supply Current 10.5mA
Analog IC - Other Type SWITCHING REGULATOR
Min Supply Voltage 1.5V
Voltage - Input (Min) 7V
Operating Supply Voltage 6.5V
Max Output Current 10A
Output Type Adjustable
Output Voltage 14.4V
Voltage - Input (Max) 16V
Number of Outputs 1
Function Step-Down
Base Part Number IR3839MPBF
Time@Peak Reflow Temperature-Max (s) 30
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Subcategory Switching Regulator or Controllers
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 17
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
JESD-609 Code e3
Series SupIRBuck?
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 17
Package / Case 17-PowerVQFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 25 Weeks
Alternative Model
