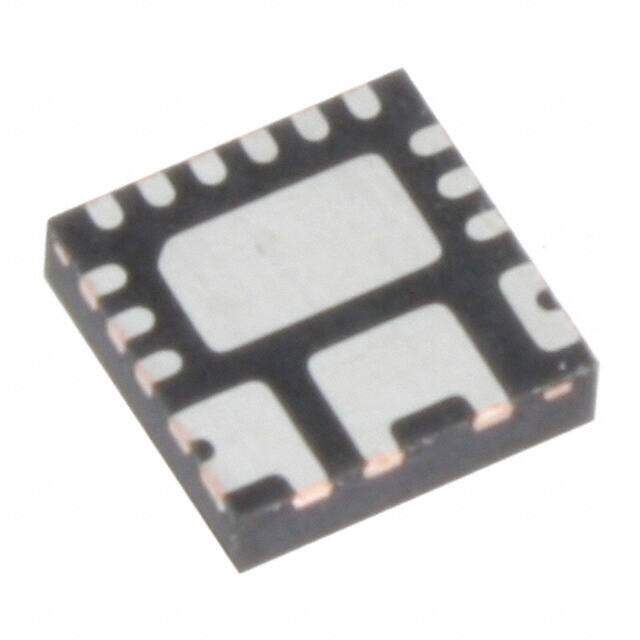

IR3823MTRPBF
RoHS
RoHS compliant
RoHS compliantPackage 15-PowerVFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
IR3823 Tape & Reel (TR) Active Step-Down DC to DC switching regulator 12V 3.5mm 3A 300kHz~1.5MHz
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.4168
≥1 USD $2.4168
≥10 USD $1.98265
≥100 USD $1.9209
≥500 USD $1.85915
≥1000 USD $1.7974
Inventory: 79285
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 15-PowerVFQFN
Number of Pins 16
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2002
Series SupIRBuck?
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 16
ECCN Code EAR99
Subcategory Switching Regulator or Controllers
Terminal Position QUAD
Base Part Number IR3823
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 21V
Output Voltage 18V
Output Type Adjustable
Max Output Current 3A
Operating Supply Voltage 7.5V
Voltage - Input (Min) 5.5V
Input Voltage-Nom 12V
Min Supply Voltage 1V
Analog IC - Other Type SWITCHING REGULATOR
Nominal Supply Current 10mA
Output Configuration Positive
Max Output Voltage 18V
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 300kHz~1.5MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 600mV
Voltage - Output (Max) 18.06V
Dimensions
Height Seated (Max) 0.95mm
Length 3.5mm
Width 3.5mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
