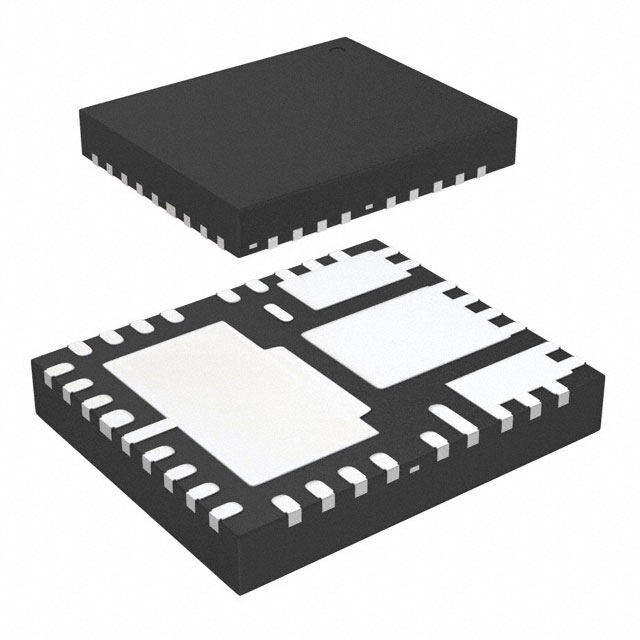

IR38060MTRPBF
RoHS
RoHS compliant
RoHS compliantPackage 35-PowerVQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Active Step-Down SWITCHING REGULATOR DC to DC switching regulator 5V 5mm 6A 400kHz~1.5MHz
PDF
/
Buying Options
Total Price: USD $3.77
Unit Price: USD $3.7664
≥1 USD $3.7664
≥10 USD $3.38448
≥100 USD $3.19968
≥500 USD $2.773056
≥1000 USD $2.630848
≥3000 USD $2.360653
Inventory: 9699
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Surface Mount
Package / Case 35-PowerVQFN
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2002
Series SupIRBuck?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 26
ECCN Code EAR99
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PXSS-N26
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 21V
Output Type Adjustable
Voltage - Input (Min) 1.2V
Input Voltage-Nom 5V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 6A
Voltage - Output (Min/Fixed) 0.5V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 400kHz~1.5MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Voltage - Output (Max) 18.38V
Dimensions
Length 6mm
Width 5mm
Compliance
RoHS Status ROHS3 Compliant
