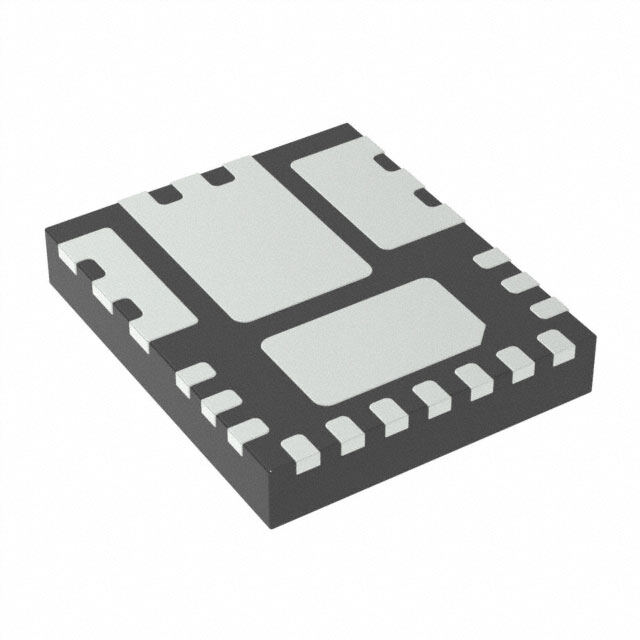

IR3477MTR1PBF
RoHS
/
Package 16-PowerVQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
IR3477MTR1PBF Tape & Reel (TR) Obsolete Step-Down DC to DC switching regulator 27V 4mm 15A Up to 750kHz
PDF
/
Buying Options
Total Price: USD $53.7
Unit Price: USD $53.6959
≥1 USD $53.6959
≥10 USD $44.05815
≥100 USD $42.6816
≥500 USD $41.30505
≥1000 USD $39.92755
Inventory: 1160
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 4mm
Length 5mm
Height 950μm
Technical
Voltage - Output (Max) 12V
Min Output Voltage 500mV
Synchronous Rectifier Yes
Max Input Voltage 27V
Frequency - Switching Up to 750kHz
Min Input Voltage 3V
Topology Buck
Voltage - Output (Min/Fixed) 0.5V
Max Output Voltage 12V
Current - Output 15A
Output Configuration Positive
Voltage - Input (Min) 3V
Operating Supply Voltage 5.5V
Max Output Current 15A
Output Type Adjustable
Output Voltage 12V
Voltage - Input (Max) 27V
Number of Outputs 1
Function Step-Down
Base Part Number IR3477MTR1PBF
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Series SupIRBuck?
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Supplier Device Package 16-QFN (5x6)
Number of Pins 17
Package / Case 16-PowerVQFN
Mounting Type Surface Mount
Mount Surface Mount
