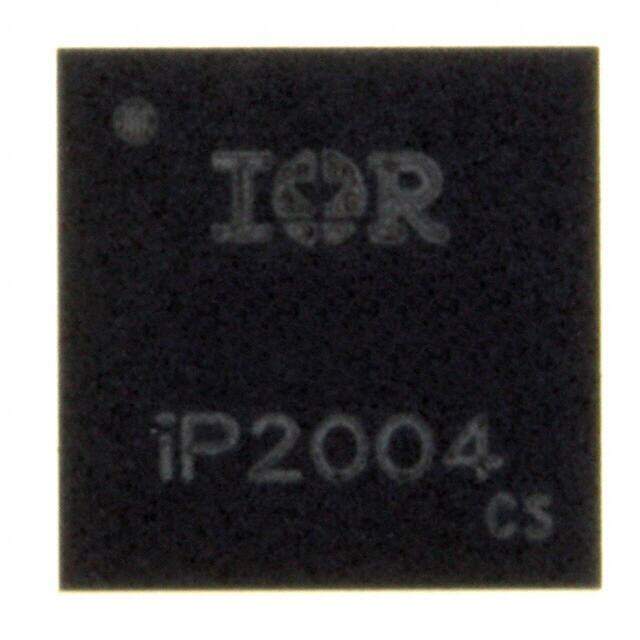

IP2004TR image
Favorite
IP2004TR image
Favorite
RoHS
/
Package Power Block (LGA)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description IP2004 Tape & Reel (TR) Obsolete Step-Down DC to DC switching regulator 13.2V 40A 250kHz~1.5MHz -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $4.03
Unit Price: USD $4.028
≥1 USD $4.028
≥10 USD $3.30505
≥100 USD $3.2015
≥500 USD $3.09795
≥1000 USD $2.99535
Inventory: 1184
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Voltage - Output (Max) 8V
Min Output Voltage 800mV
Synchronous Rectifier Yes
Max Input Voltage 13.2V
Frequency - Switching 250kHz~1.5MHz
Min Input Voltage 3V
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Max Output Voltage 8V
Current - Output 40A
Output Configuration Positive
Voltage - Input (Min) 3V
Operating Supply Voltage 6V
Max Output Current 40A
Output Type Adjustable
Output Voltage 8V
Voltage - Input (Max) 13.2V
Number of Outputs 1
Function Step-Down
Base Part Number IP2004
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series iPOWIR?
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ

Physical

Supplier Device Package LGA (7.7x7.7)
Number of Pins 10
Package / Case Power Block (LGA)
Mounting Type Surface Mount
Mount Surface Mount
