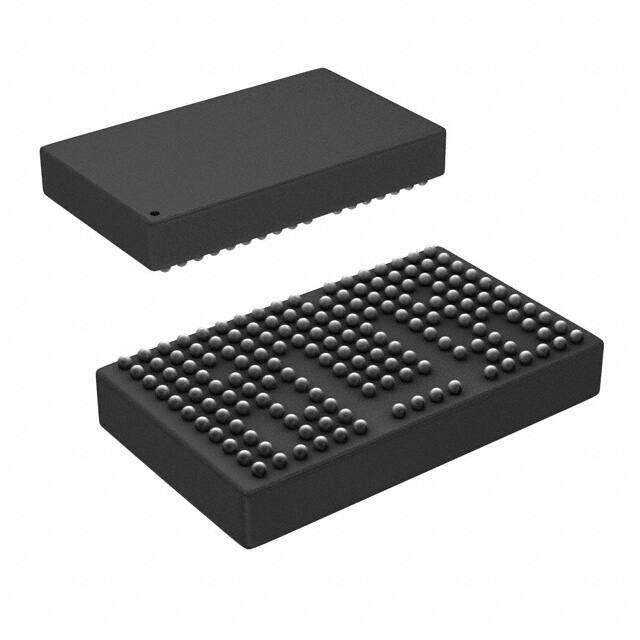

IP1202PBF image
Favorite
IP1202PBF image
Favorite
RoHS
/
Package 161-BBGA Power Module
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description IP1202PBF Tube Obsolete Step-Down DC to DC switching regulator 13.2V 9.25mm 30A 15A 170kHz~460kHz
PDF
/
Buying Options
Total Price: USD $24.04
Unit Price: USD $24.04165
≥1 USD $24.04165
≥10 USD $19.72675
≥100 USD $19.1102
≥500 USD $18.49365
≥1000 USD $17.87805
Inventory: 1197
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Length 15.5mm

Technical

Voltage - Output (Max) 5V
Threshold Voltage 4.8V
Min Output Voltage 800mV
Synchronous Rectifier Yes
Max Input Voltage 13.2V
Frequency - Switching 170kHz~460kHz
Min Input Voltage 5.5V
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Max Output Voltage 5V
Current - Output 30A 15A
Output Configuration Positive
Voltage - Input (Min) 5.5V
Max Output Current 30A
Output Type Adjustable
Output Voltage 5V
Voltage - Input (Max) 13.2V
Number of Outputs 1 or 2
Function Step-Down
Base Part Number IP1202PBF
Depth 9.25mm
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series iPOWIR?
Published 2006
Packaging Tube
Operating Temperature -40°C~125°C TJ

Physical

Supplier Device Package 161-BGA Power Block (15.5x9.25)
Number of Pins 161
Package / Case 161-BBGA Power Module
Mounting Type Surface Mount
Mount Surface Mount
