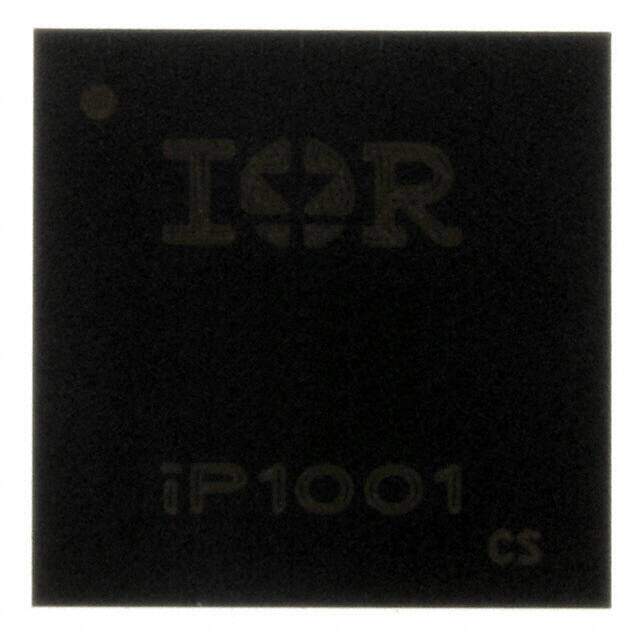

IP1001
RoHS
/
Package 218-BFBGA Power Module
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
IP1001 Bulk Tin/Lead (Sn/Pb) Obsolete DC to DC switching regulator 12V 0.8mm 20A 200kHz 300kHz
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.213162
≥1 USD $1.213162
≥10 USD $1.144497
≥100 USD $1.079713
≥500 USD $1.018596
≥1000 USD $0.960937
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Voltage - Output (Max) 2V
Synchronous Rectifier Yes
Frequency - Switching 200kHz 300kHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.925V
Current - Output 20A
Output Configuration Positive
Voltage - Input (Min) 3.3V
Output Type Adjustable
Voltage - Input (Max) 12V
Qualification Status Not Qualified
Number of Outputs 1
Function Step-Down
Base Part Number IP1001
Reach Compliance Code unknown
Terminal Pitch 0.8mm
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Switching Regulator or Controllers
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 218
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e0
Series iPOWIR?
Published 2003
Packaging Bulk
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 218-BFBGA Power Module
Mounting Type Surface Mount
