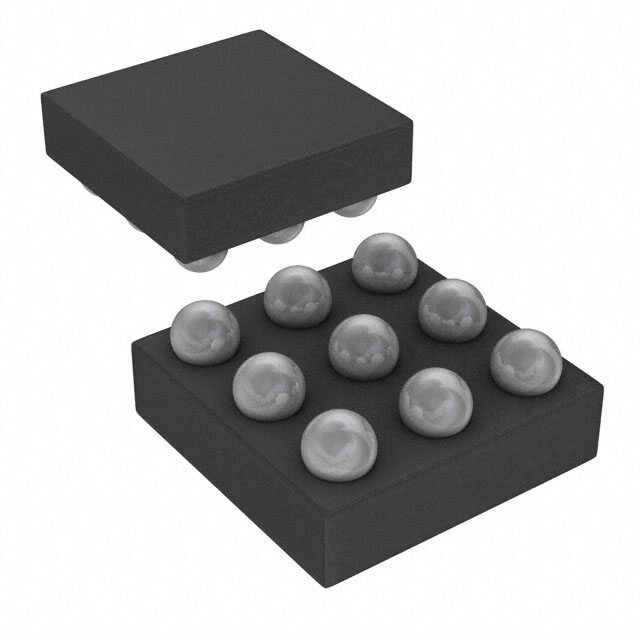

ADP5301ACBZ-1-R7

Analog Devices Inc.
RoHS
RoHS RoHS compliant
Package 9-WFBGA, WLCSP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description ADP5301 Tape & Reel (TR) Tin/Silver/Copper (Sn/Ag/Cu) PRODUCTION (Last Updated: 3weeks ago) DC to DC switching regulator 3.6V 0.66mm 50mA 500mA 2MHz
PDF
/
Buying Options
Total Price: USD $2.52
Unit Price: USD $2.5168
≥1 USD $2.5168
≥10 USD $2.26336
≥100 USD $2.139808
≥500 USD $1.854512
≥1000 USD $1.759366
≥3000 USD $1.578685
Inventory: 1480
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height Seated (Max) 0.66mm

Technical

Min Output Voltage 800mV
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 2MHz
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Max Output Voltage 5V
Current - Output 50mA 500mA
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.15V
Operating Supply Voltage 6.5V
Output Type Programmable
Output Voltage 5V
Number of Outputs 1
Function Step-Down
Base Part Number ADP5301
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ

Physical

Number of Pins 9
Package / Case 9-WFBGA, WLCSP
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status PRODUCTION (Last Updated: 3 weeks ago)
Factory Lead Time 20 Weeks
