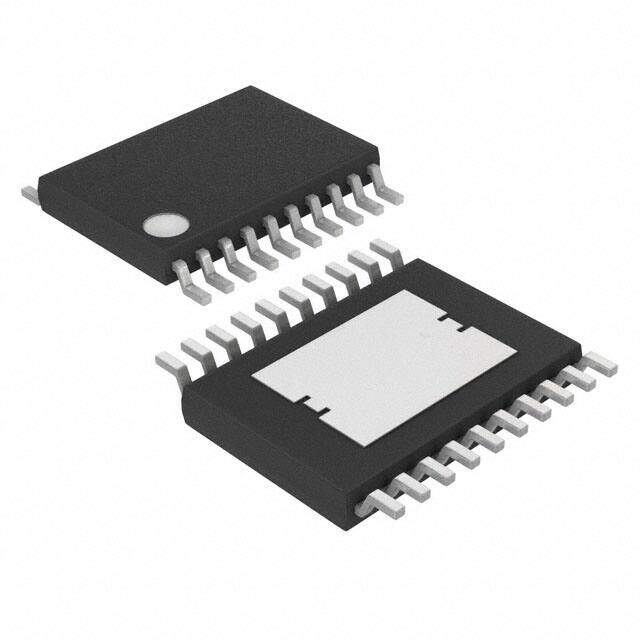

ADP5070AREZ
RoHS
RoHS compliant
RoHS compliantPackage 20-TSSOP (0.173, 4.40mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
ADP5070 Tube PRODUCTION (Last Updated: 1month ago) Active DC to DC switching regulator 5V 4.4mm 600mA 1A 1.2MHz 2.4MHz
PDF
/
Buying Options
Total Price: USD $6.51
Unit Price: USD $6.512
≥1 USD $6.512
≥10 USD $5.88544
≥100 USD $5.611936
≥500 USD $4.872736
≥1000 USD $4.653766
≥3000 USD $4.243122
Inventory: 280
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 4.4mm
Length 6.5mm
Technical
Current - Output 2 600mA
Voltage - Output (Max) ±39V
Switcher Configuration BUCK-BOOST
Min Output Voltage 1.6V
Synchronous Rectifier No
Current - Output 1 1A
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1.2MHz 2.4MHz
Control Mode CURRENT-MODE
Topology Boost, SEPIC
Voltage - Output (Min/Fixed) 0.8V 1.6V
Voltage - Output 2 -39V
Max Output Voltage 39V
Current - Output 600mA 1A
Output Configuration Positive and Negative (Dual Rail)
Analog IC - Other Type DUAL SWITCHING CONTROLLER
Input Voltage-Nom 5V
Voltage - Input (Min) 2.85V
Operating Supply Voltage 15V
Voltage - Output 1 39V
Output Type Adjustable
Output Voltage 39V
Number of Outputs 2
Function Step-Up, Step-Up/Step-Down
Base Part Number ADP5070
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.65mm
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Number of Terminations 20
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code no
JESD-609 Code e3
Packaging Tube
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 20
Package / Case 20-TSSOP (0.173, 4.40mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 8 Weeks
