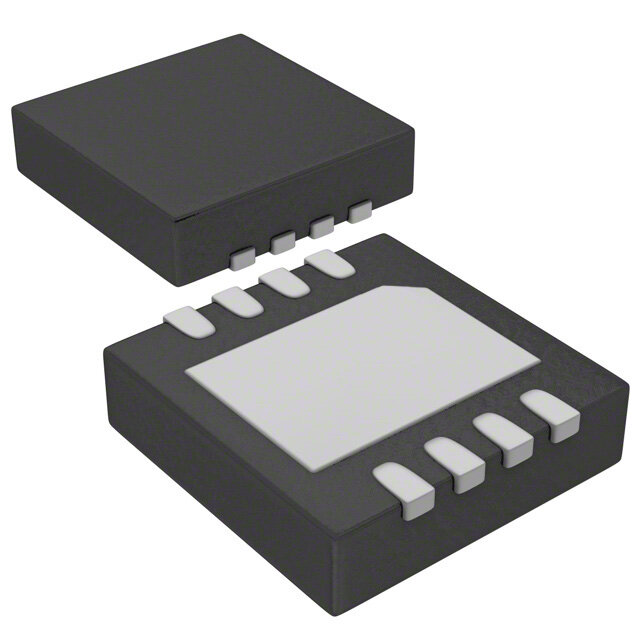

ADP2360ACPZ-R7
RoHS
RoHS compliant
RoHS compliantPackage 8-WDFN Exposed Pad, CSP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
ADP2360 Tape & Reel (TR) Matte Tin (Sn) PRODUCTION (Last Updated: 1month ago) DC to DC switching regulator 24V 3mm 50mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $10.2
Unit Price: USD $10.203
≥1 USD $10.203
≥10 USD $8.3714
≥100 USD $8.11015
≥500 USD $7.84795
≥1000 USD $7.5867
Inventory: 10298
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Physical
Mounting Type Surface Mount
Package / Case 8-WDFN Exposed Pad, CSP
Surface Mount YES
Number of Pins 8
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
JESD-609 Code e3
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number ADP2360
Function Step-Down
Number of Outputs 1
Output Voltage 60V
Output Type Adjustable
Voltage - Input (Min) 4.5V
Input Voltage-Nom 24V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 50mA
Voltage - Output (Min/Fixed) 0.8V
Topology Buck
Control Technique PULSE FREQUENCY MODULATION
Synchronous Rectifier Yes
Dimensions
Length 3mm
Width 3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
