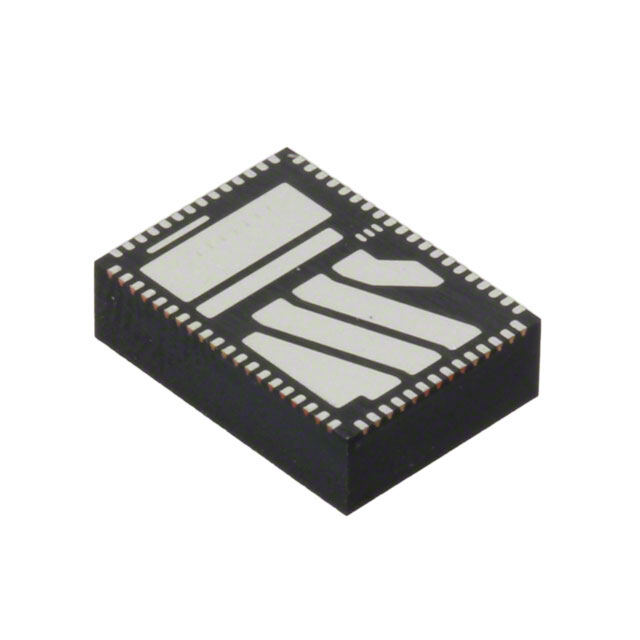

EN2342QI
RoHS
/
Package QFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
VOLTAGE-MODE RoHS Compliant Adjustable Positive Switching Regulator IC 85C 1MHz 4A 8mm
PDF
/
Buying Options
Total Price: USD $13.05
Unit Price: USD $13.0477
≥1 USD $13.0477
≥10 USD $12.30915
≥100 USD $11.61241
≥500 USD $10.9551
≥1000 USD $10.335
≥3000 USD $9.75
Inventory: 8632
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Package / Case QFN
Number of Pins 68
Technical
Packaging Cut Tape
Published 2015
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 3
Number of Terminations 68
ECCN Code EAR99
Terminal Finish MATTE TIN
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 68
Number of Outputs 1
Output Voltage 3.3V
Output Type Adjustable
Input Voltage-Nom 12V
Temperature Grade INDUSTRIAL
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 4A
Max Output Voltage 5V
Min Input Voltage 4.5V
Control Mode VOLTAGE-MODE
Frequency - Switching 1MHz
Max Input Voltage 14V
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 750mV
Switcher Configuration BUCK
Dimensions
Height Seated (Max) 3.05mm
Width 8mm
Compliance
RoHS Status RoHS Compliant
