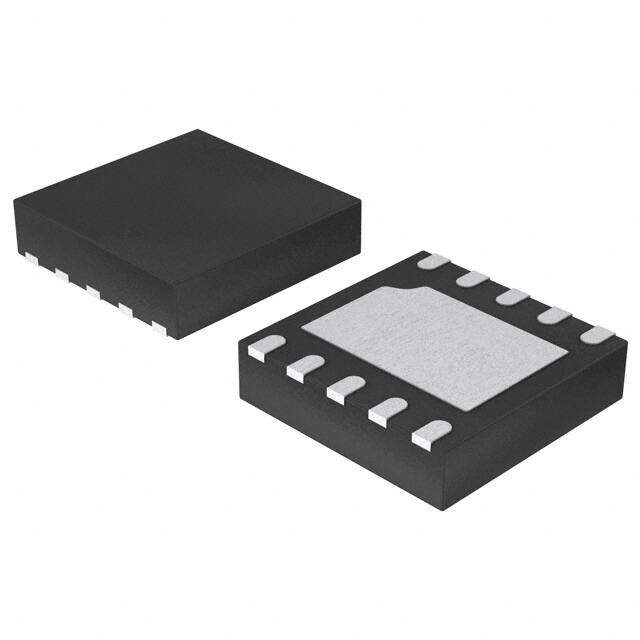

A8586KEJTR-T
RoHS
RoHS compliant
RoHS compliantPackage 10-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
OUTPUT VOLTAGE RANGE FROM 0.8V TO 30V ALSO OPERATES IN PFM CONTROL TECHNIQUE Tape & Reel (TR) Active Step-Down DC to DC switching regulator 12V 3mm 3.5A 200kHz~4MHz
PDF
/
Buying Options
Total Price: USD $23.47
Unit Price: USD $23.474652
≥1 USD $23.474652
≥200 USD $9.085268
≥500 USD $8.766233
≥1000 USD $8.607372
Inventory: 1196
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 0.8mm
Technical
Voltage - Output (Max) 30V
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 200kHz~4MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Current - Output 3.5A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 3.8V
Output Type Adjustable
Voltage - Input (Max) 36V
Number of Outputs 1
Function Step-Down
Terminal Pitch 0.5mm
Terminal Position DUAL
Additional Feature OUTPUT VOLTAGE RANGE FROM 0.8 V TO 30 V, ALSO OPERATES IN PFM CONTROL TECHNIQUE
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Surface Mount YES
Package / Case 10-WFDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
