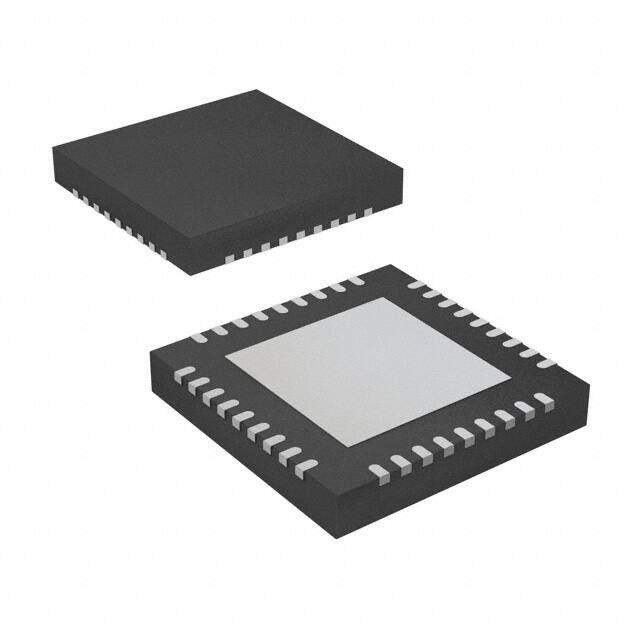

TPS40140RHHT
RoHS
RoHS compliant
RoHS compliantPackage 36-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
TPS40140 Buck Tape & Reel (TR) e4 DC to DC switching controller 25A 25A 105.687022mg 5.8V
PDF
/
Buying Options
Total Price: USD $5.53
Unit Price: USD $5.5264
≥1 USD $5.5264
≥10 USD $4.99488
≥100 USD $4.762912
≥500 USD $4.135472
Inventory: 1111
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status NRND (Last Updated: 3 days ago)
Physical
Contact Plating Gold
Mounting Type Surface Mount
Package / Case 36-VFQFN Exposed Pad
Surface Mount YES
Number of Pins 36
Weight 105.687022mg
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 36
ECCN Code EAR99
Additional Feature ALSO OPERATES IN CURRENT MODE
Subcategory Switching Regulator or Controllers
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.5mm
Frequency 1MHz
Base Part Number TPS40140
Function Step-Down
Number of Outputs 2
Output Voltage 5.8V
Output Type Transistor Driver
Max Output Current 25A
Input Voltage-Nom 12V
Analog IC - Other Type DUAL SWITCHING CONTROLLER
Output Configuration Positive
Output Current 25A
Voltage - Supply (Vcc/Vdd) 4.5V~15V
Quiescent Current 2.8mA
Control Features Current Limit, Frequency Control, Phase Control, Power Good, Tracking
Max Output Voltage 5.8V
Topology Buck
Min Input Voltage 2V
Control Mode VOLTAGE-MODE
Frequency - Switching 150kHz~1MHz
Max Input Voltage 40V
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 700mV
Switcher Configuration PHASE-SHIFT
Duty Cycle (Max) 87.5%
Clock Sync No
Dimensions
Height 1mm
Length 6mm
Width 6mm
Thickness 900μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
