TL2844BD
RoHS
RoHS compliant

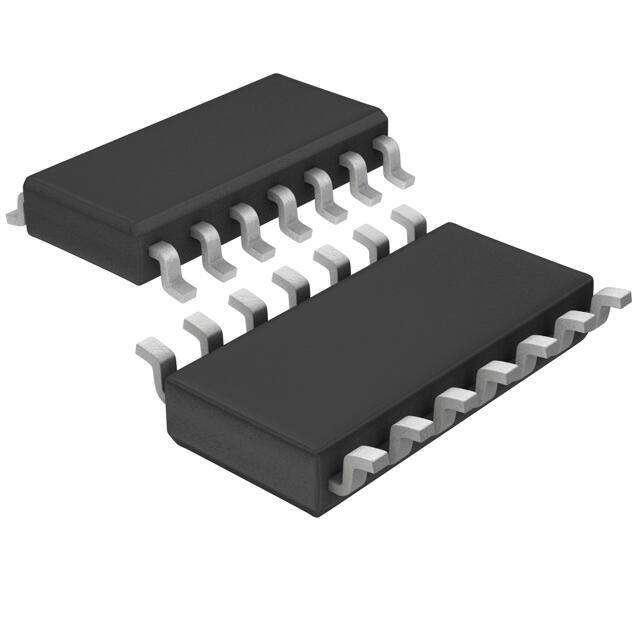

RoHS compliantPackage 14-SOIC (0.154, 3.90mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
CURRENT-MODE BIPOLAR DUAL Surface Mount DC-DC Controller IC 50ns -40C~85C TA Up to 500kHz 30V
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.073456
≥1 USD $1.073456
≥10 USD $1.012698
≥100 USD $0.955374
≥500 USD $0.9013
≥1000 USD $0.850277
Inventory: 7411
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 3.9mm
Length 8.65mm
Technical
Duty Cycle (Max) 48%
Max Duty Cycle 50 %
Switcher Configuration SINGLE
Nominal Input Voltage 5.5V
Fall Time (Typ) 50 ns
Synchronous Rectifier No
Rise Time 50ns
Control Technique PULSE WIDTH MODULATION
Frequency - Switching Up to 500kHz
Control Mode CURRENT-MODE
Topology Boost, Flyback, Forward
Control Features Frequency Control
Voltage - Supply (Vcc/Vdd) 10V~30V
Output Current 200mA
Output Configuration Positive
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 15V
Output Type Transistor Driver
Output Voltage 30V
Number of Outputs 1
Function Step-Up, Step-Up/Step-Down
Base Part Number TL2844
Frequency 500kHz
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Switching Regulator or Controllers
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e4
Packaging Tube
Operating Temperature -40°C~85°C TA
Physical
Weight 129.387224mg
Number of Pins 14
Surface Mount YES
Package / Case 14-SOIC (0.154, 3.90mm Width)
Mounting Type Surface Mount
