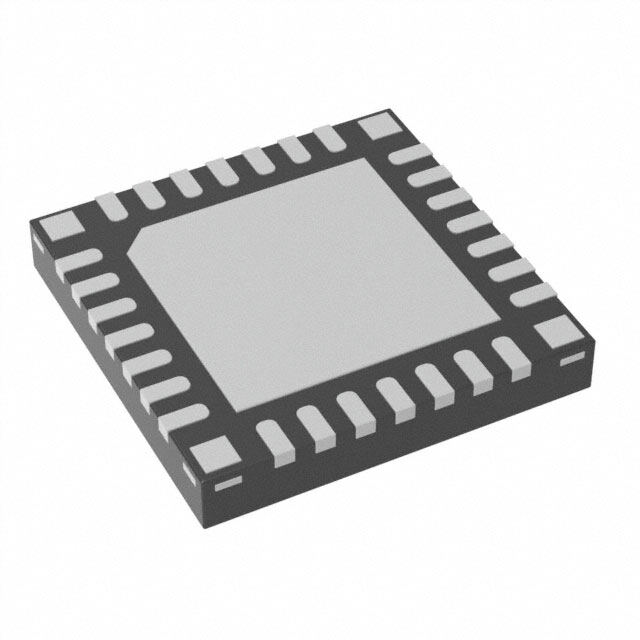

LM5036RJBR
RoHS
RoHS compliant
RoHS compliantPackage 28-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
LM5036 Half-Bridge Tape & Reel (TR) e4 DC to DC switching controller 5mm 14V 2MHz -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $7.52
Unit Price: USD $7.51735
≥1 USD $7.51735
≥10 USD $6.16835
≥100 USD $5.9755
≥500 USD $5.78265
≥1000 USD $5.59075
Inventory: 1843
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5mm
Length 5mm
Height Seated (Max) 0.8mm
Technical
Duty Cycle (Max) 50%
Switcher Configuration BUCK
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 14V
Frequency - Switching 2MHz
Control Mode VOLTAGE-MODE
Topology Half-Bridge
Input Voltage (Min) 8.5V
Control Features Current Limit, Frequency Control, Ramp
Voltage - Supply (Vcc/Vdd) 7.5V~8.1V
Output Configuration Positive, Isolation Capable
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 9V
Output Type PWM
Number of Outputs 2
Function Step-Up/Step-Down
Base Part Number LM5036
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 28
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 28-WFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
