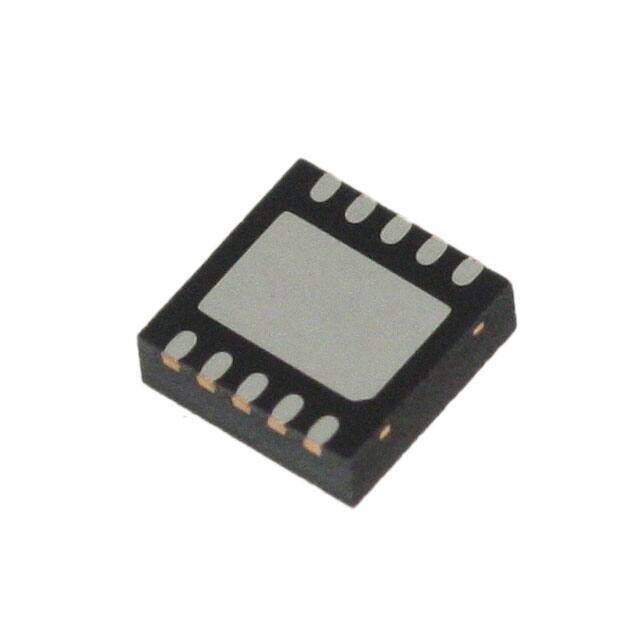

L6728AHTR
RoHS
RoHS compliant
RoHS compliantPackage 10-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
L6728 Buck Tape & Reel (TR) e3 DC to DC switching controller 6mA 3mm 800mV 600kHz
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5377
≥1 USD $0.5377
≥10 USD $0.4408
≥100 USD $0.4275
≥500 USD $0.41325
≥1000 USD $0.39995
Inventory: 1621
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 3mm
Length 3mm
Technical
Clock Sync No
Max Duty Cycle 67 %
Max Frequency 660kHz
Switcher Configuration SINGLE
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 600kHz
Control Mode VOLTAGE-MODE
Topology Buck
Input Voltage (Min) 5V
Control Features Enable, Phase Control, Power Good
Max Supply Current 6mA
Voltage - Supply (Vcc/Vdd) 5V~12V
Output Current 1.5A
Output Configuration Positive
Operating Supply Current 6mA
Analog IC - Other Type SWITCHING CONTROLLER
Output Type Transistor Driver
Output Voltage 800mV
Number of Outputs 1
Function Step-Down
Base Part Number L6728
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Subcategory Switching Regulator or Controllers
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 10
Package / Case 10-VFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
