L6711
RoHS
RoHS compliant
RoHS compliantPackage 48-TQFP Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description

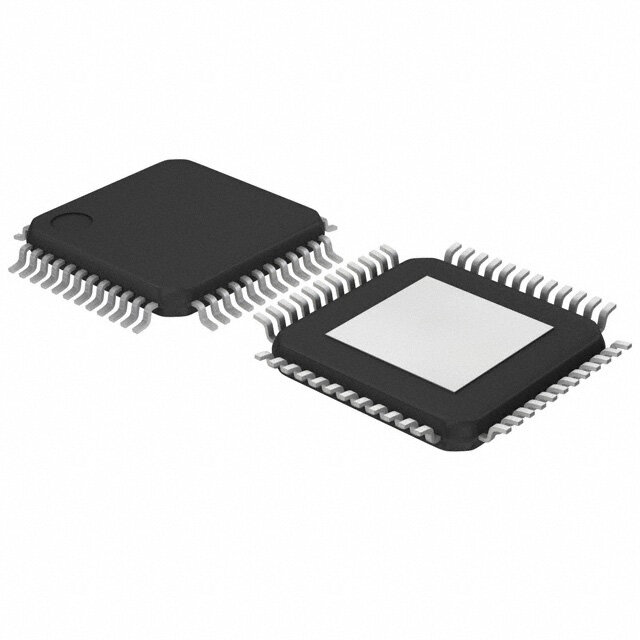

L6711 Buck Tube e4 DC to DC switching controller 95A 7mm 1.581V 150kHz
PDF
/
Buying Options
Total Price: USD $5.64
Unit Price: USD $5.6392
≥1 USD $5.6392
≥10 USD $4.6265
≥100 USD $4.4821
≥500 USD $4.3377
≥1000 USD $4.1933
Inventory: 1658
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 1.2mm
Technical
Clock Sync No
Duty Cycle (Max) 80%
Max Frequency 178kHz
Switcher Configuration PHASE-SHIFT
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 150kHz
Control Mode CURRENT-MODE
Topology Buck
Input Voltage (Min) 10.2V
Control Features Enable, Frequency Control, Phase Control, Soft Start
Voltage - Supply (Vcc/Vdd) 7.5V~15V
Output Current 95A
Output Configuration Positive
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 12V
Operating Supply Voltage 13.8V
Output Type Transistor Driver
Output Voltage 1.581V
Number of Outputs 3
Function Step-Down
Base Part Number L6711
Terminal Pitch 0.5mm
Terminal Form GULL WING
Terminal Position QUAD
Subcategory Switching Regulator or Controllers
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 48
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e4
Packaging Tube
Operating Temperature 0°C~125°C TJ
Physical
Number of Pins 48
Package / Case 48-TQFP Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
