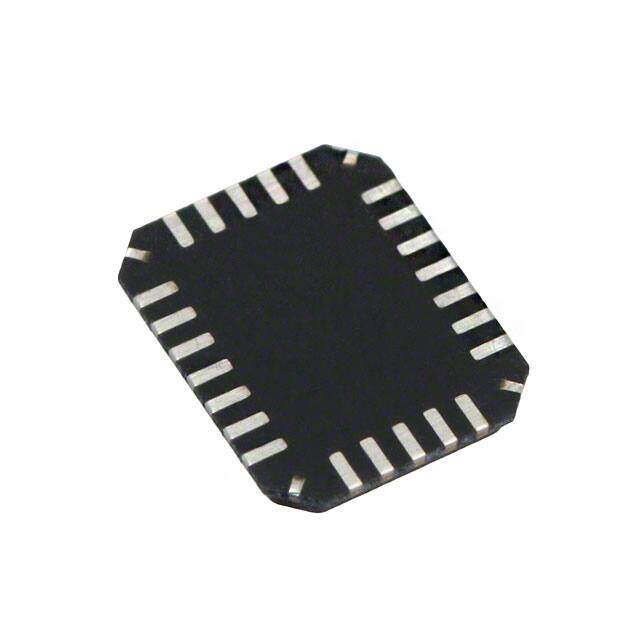

AN8049FHNEBV
RoHS
/
Package 24-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
IC REG CTRLR BUCK/BOOST 24QFN
PDF
/
Buying Options
Total Price: USD $5.3
Unit Price: USD $5.297534
≥1 USD $5.297534
≥10 USD $4.997675
≥100 USD $4.714791
≥500 USD $4.447914
≥1000 USD $4.196146
Inventory: 1127
Minimum: 1
-
+
Technical Details
Technical
Output Current 40mA
Voltage - Supply (Vcc/Vdd) 1.8V~14V
Control Features Enable, Soft Start
Topology Buck, Boost
Frequency - Switching 20kHz~1MHz
Synchronous Rectifier No
Duty Cycle (Max) 86%
Clock Sync No
Output Phases 1
Output Configuration Positive or Negative
Output Type Transistor Driver
Number of Outputs 3
Function Step-Up/Step-Down
Base Part Number AN8049FHN
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Published 2001
Packaging Cut Tape (CT)
Operating Temperature -30°C~85°C TA
Compliance
RoHS Status RoHS Compliant
Physical
Supplier Device Package 24-QFN (5.2x4)
Number of Pins 24
Package / Case 24-VFQFN
Mounting Type Surface Mount
Mount Surface Mount
