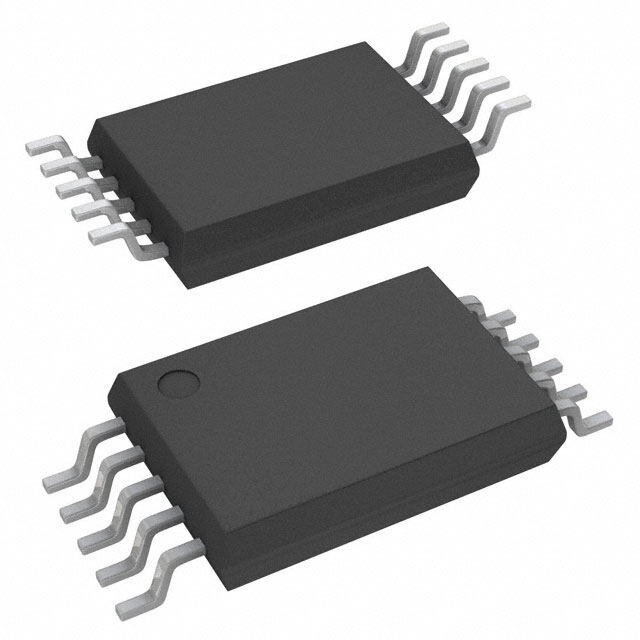

AN8016NSH-E1
RoHS
/
Package 10-FSOP (0.169, 4.30mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
AN8016NSH Boost Tape & Reel (TR) Positive DC to DC switching controller 50mA 15V 2kHz~1MHz -30C~85C TA
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.07445
≥1 USD $1.07445
≥10 USD $0.8816
≥100 USD $0.85405
≥500 USD $0.8265
≥1000 USD $0.79895
Inventory: 1384
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 10-FSOP (0.169, 4.30mm Width)
Number of Pins 10
Supplier Device Package 10-SSOP
Technical
Operating Temperature -30°C~85°C TA
Packaging Tape & Reel (TR)
Published 2007
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Base Part Number AN8016NSH
Function Step-Up
Number of Outputs 1
Output Voltage 15V
Output Type Transistor Driver
Output Configuration Positive
Output Current 50mA
Voltage - Supply (Vcc/Vdd) 1.8V~14V
Output Power 115mW
Control Features Enable, Soft Start
Topology Boost
Frequency - Switching 2kHz~1MHz
Synchronous Rectifier No
Max Frequency 1MHz
Duty Cycle (Max) 80%
Clock Sync No
Output Phases 1
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
