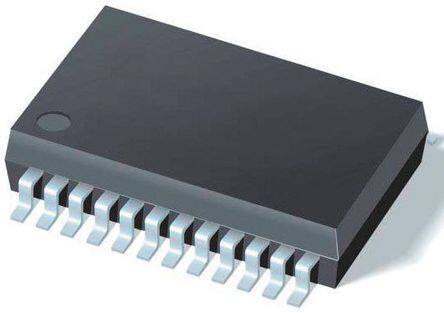

AN33014UA-VB
RoHS
RoHS compliant
RoHS compliantPackage 24-TSSOP (0.240, 6.10mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
AN33014 Buck Tape & Reel (TR) Positive DC to DC switching controller 1.5A 1.5A 1.1mm 9V
PDF
/
Buying Options
Total Price: USD $8.06
Unit Price: USD $8.05505
≥1 USD $8.05505
≥10 USD $6.60915
≥100 USD $6.403
≥500 USD $6.1959
≥1000 USD $5.98975
Inventory: 6813
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 6.1mm
Length 7.8mm
Height 1.1mm
Technical
Clock Sync Yes
Min Output Voltage 1.2V
Synchronous Rectifier No
Max Input Voltage 25V
Frequency - Switching 200kHz~2MHz
Control Mode VOLTAGE-MODE
Min Input Voltage 5V
Topology Buck
Max Output Voltage 9V
Control Features Enable, Frequency Control, Soft Start
Voltage - Supply (Vcc/Vdd) 5V~25V
Output Current 1.5A
Output Configuration Positive
Max Output Current 1.5A
Output Type Transistor Driver
Output Voltage 9V
Number of Outputs 1
Function Step-Down
Base Part Number AN33014
Terminal Pitch 0.635mm
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Switching Regulator or Controllers
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 24
Package / Case 24-TSSOP (0.240, 6.10mm Width)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
