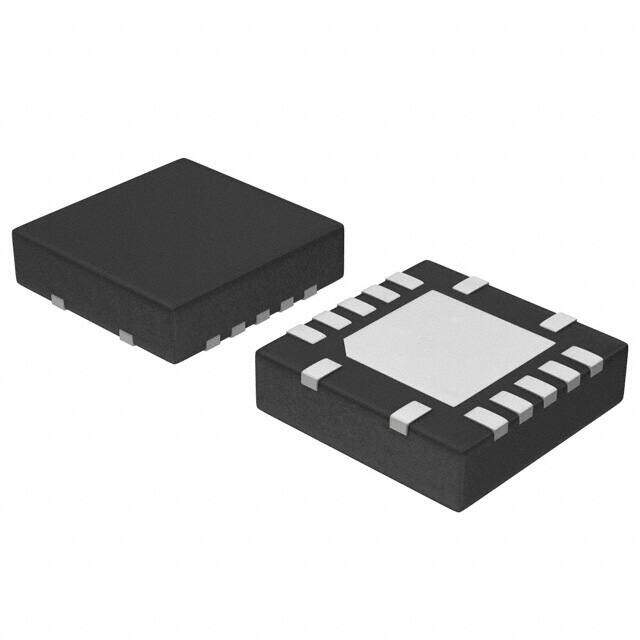

NCP5217AMNTXG
RoHS
RoHS compliant
RoHS compliantPackage 14-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
NCP5217 Buck Tape & Reel (TR) e3 DC to DC switching controller 1.5mA 3.5mm 3.3V 300kHz
PDF
/
Buying Options
Total Price: USD $0.44
Unit Price: USD $0.4427
≥1 USD $0.4427
≥10 USD $0.36385
≥100 USD $0.35245
≥500 USD $0.34105
≥1000 USD $0.32965
Inventory: 1160
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 3.5mm
Length 3.5mm
Technical
Clock Sync No
Isolation Non-Isolated
Max Frequency 330kHz
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Halogen Free Halogen Free
Input Voltage (Max) 27V
Frequency - Switching 300kHz
Topology Buck
Input Voltage (Min) 4.5V
Control Features Enable, Power Good
Voltage - Supply (Vcc/Vdd) 4.5V~27V
Output Current 3.3A
Output Configuration Positive
Operating Supply Current 1.5mA
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Output Type Transistor Driver
Output Voltage 3.3V
Number of Outputs 1
Function Step-Down
Base Part Number NCP5217
Terminal Pitch 0.5mm
Terminal Position QUAD
Additional Feature ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 3.3V
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 14
Package / Case 14-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 8 Weeks
