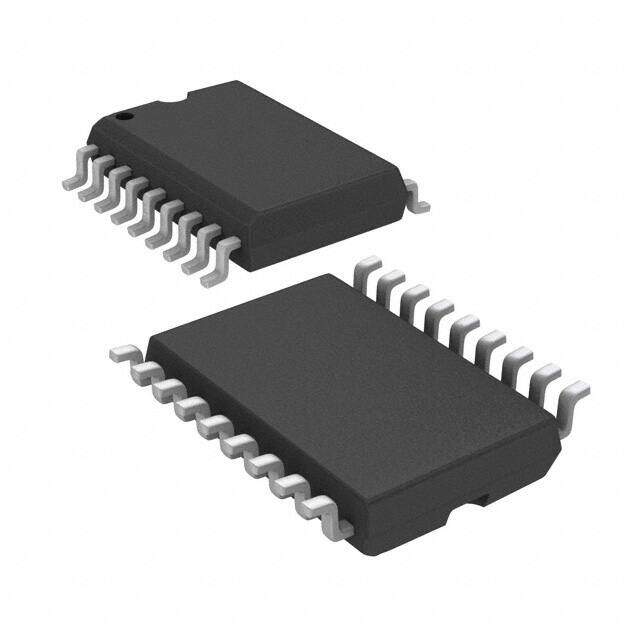

SG3526DW
RoHS
RoHS compliant
RoHS compliantPackage 18-SOIC (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
SG*526 Buck Flyback 18-SOIC (0.295 7.50mm Width) e3 DC to DC switching controller 100ns 18mA 7.5mm 5V
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.55322
≥1 USD $0.55322
≥10 USD $0.52191
≥100 USD $0.492362
≥500 USD $0.464504
≥1000 USD $0.438194
Inventory: 1213
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 7.5mm
Technical
Output Phases 1
Clock Sync No
Max Duty Cycle 49 %
Switcher Configuration PUSH-PULL
Fall Time (Typ) 100 ns
Synchronous Rectifier Yes
Rise Time 300ns
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1Hz~350kHz
Control Mode VOLTAGE-MODE
Topology Buck, Flyback
Input Voltage (Min) 8V
Control Features Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Quiescent Current 18mA
Voltage - Supply (Vcc/Vdd) 8V~35V
Output Current 100mA
Output Configuration Positive
Operating Supply Current 18mA
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 15V
Output Type Transistor Driver
Output Voltage 5V
Number of Outputs 2
Function Step-Down, Step-Up/Step-Down
Base Part Number SG*526
Time@Peak Reflow Temperature-Max (s) 40
Frequency 500kHz
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Switching Regulator or Controllers
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 18
Package / Case 18-SOIC (0.295, 7.50mm Width)
Mounting Type Surface Mount
Mount Surface Mount
