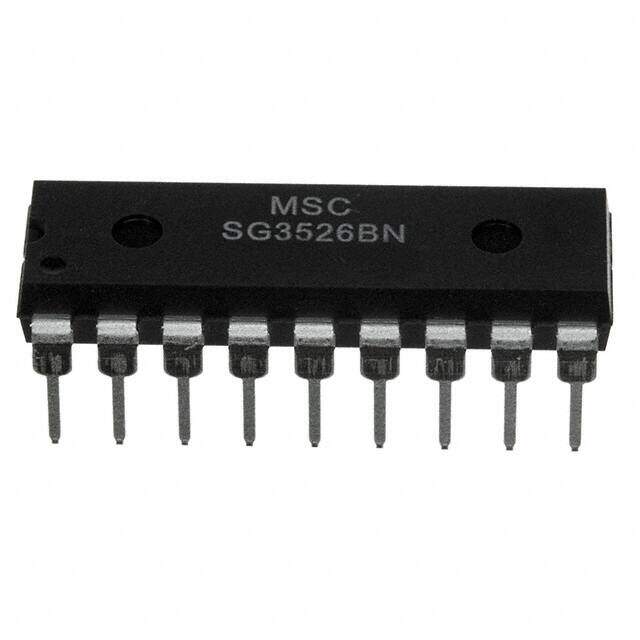

SG3526BN
RoHS
RoHS compliant
RoHS compliantPackage 18-DIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
SG*526 Buck Flyback Tube e3 DC to DC switching controller 100ns 18mA 1.270087g 5V
PDF
/
Buying Options
Total Price: USD $16.96
Unit Price: USD $16.96
≥1 USD $16.96
≥10 USD $16
≥100 USD $15.09434
≥500 USD $14.23994
≥1000 USD $13.43391
≥3000 USD $12.6735
Inventory: 12
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 5.08mm
Technical
Output Phases 1
Clock Sync No
Max Duty Cycle 49 %
Switcher Configuration PUSH-PULL
Fall Time (Typ) 100 ns
Synchronous Rectifier Yes
Rise Time 300 ns
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1Hz~500kHz
Control Mode VOLTAGE-MODE
Topology Buck, Flyback
Input Voltage (Min) 8V
Control Features Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Quiescent Current 18mA
Voltage - Supply (Vcc/Vdd) 8V~35V
Output Current 100mA
Output Configuration Positive
Operating Supply Current 18mA
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 15V
Output Type Transistor Driver
Output Voltage 5V
Number of Outputs 2
Function Step-Down, Step-Up/Step-Down
Base Part Number SG*526
Frequency 500kHz
Terminal Position DUAL
Technology BIPOLAR
Subcategory Switching Regulator or Controllers
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Published 1997
Packaging Tube
Operating Temperature 0°C~70°C TA
Physical
Weight 1.270087g
Number of Pins 16
Package / Case 18-DIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 2 weeks ago)
