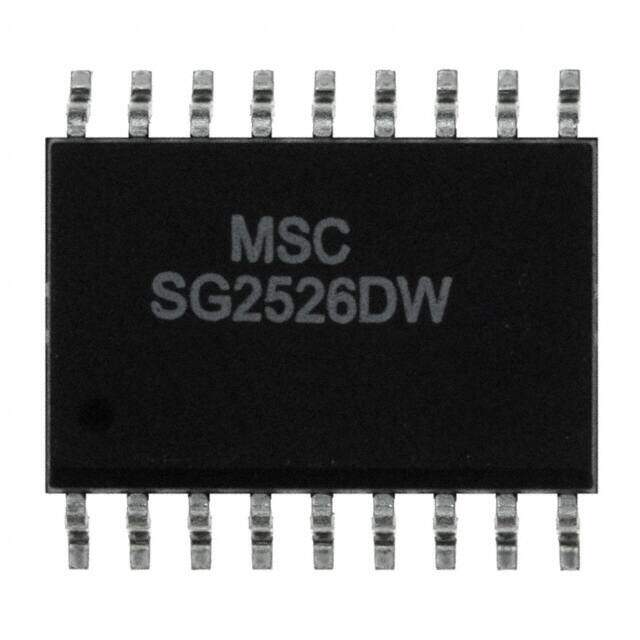

SG2526DW
RoHS
RoHS compliant
RoHS compliantPackage 18-SOIC (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
SG*526 Buck Flyback 18-SOIC (0.295 7.50mm Width) e3 DC to DC switching controller 100ns 7.5mm 5V 1Hz~350kHz
PDF
/
Buying Options
Total Price: USD $16.69
Unit Price: USD $16.688519
≥1 USD $16.688519
≥10 USD $15.743885
≥100 USD $14.852713
≥500 USD $14.011991
≥1000 USD $13.218876
Inventory: 1500
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 2 weeks ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 18-SOIC (0.295, 7.50mm Width)
Number of Pins 18
Technical
Operating Temperature -25°C~85°C TA
Published 1997
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 18
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Subcategory Switching Regulator or Controllers
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Frequency 500kHz
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number SG*526
Function Step-Down, Step-Up/Step-Down
Number of Outputs 2
Output Voltage 5V
Output Type Transistor Driver
Input Voltage-Nom 15V
Analog IC - Other Type SWITCHING CONTROLLER
Output Configuration Positive
Voltage - Supply (Vcc/Vdd) 8V~35V
Quiescent Current 18mA
Control Features Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Input Voltage (Min) 8V
Topology Buck, Flyback
Control Mode VOLTAGE-MODE
Frequency - Switching 1Hz~350kHz
Input Voltage (Max) 35V
Control Technique PULSE WIDTH MODULATION
Rise Time 300 ns
Synchronous Rectifier Yes
Fall Time (Typ) 100 ns
Switcher Configuration PUSH-PULL
Output Voltage-Max 5.05V
Output Voltage-Min 4.95V
Duty Cycle (Max) 49%
Clock Sync No
Output Phases 1
Dimensions
Width 7.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
